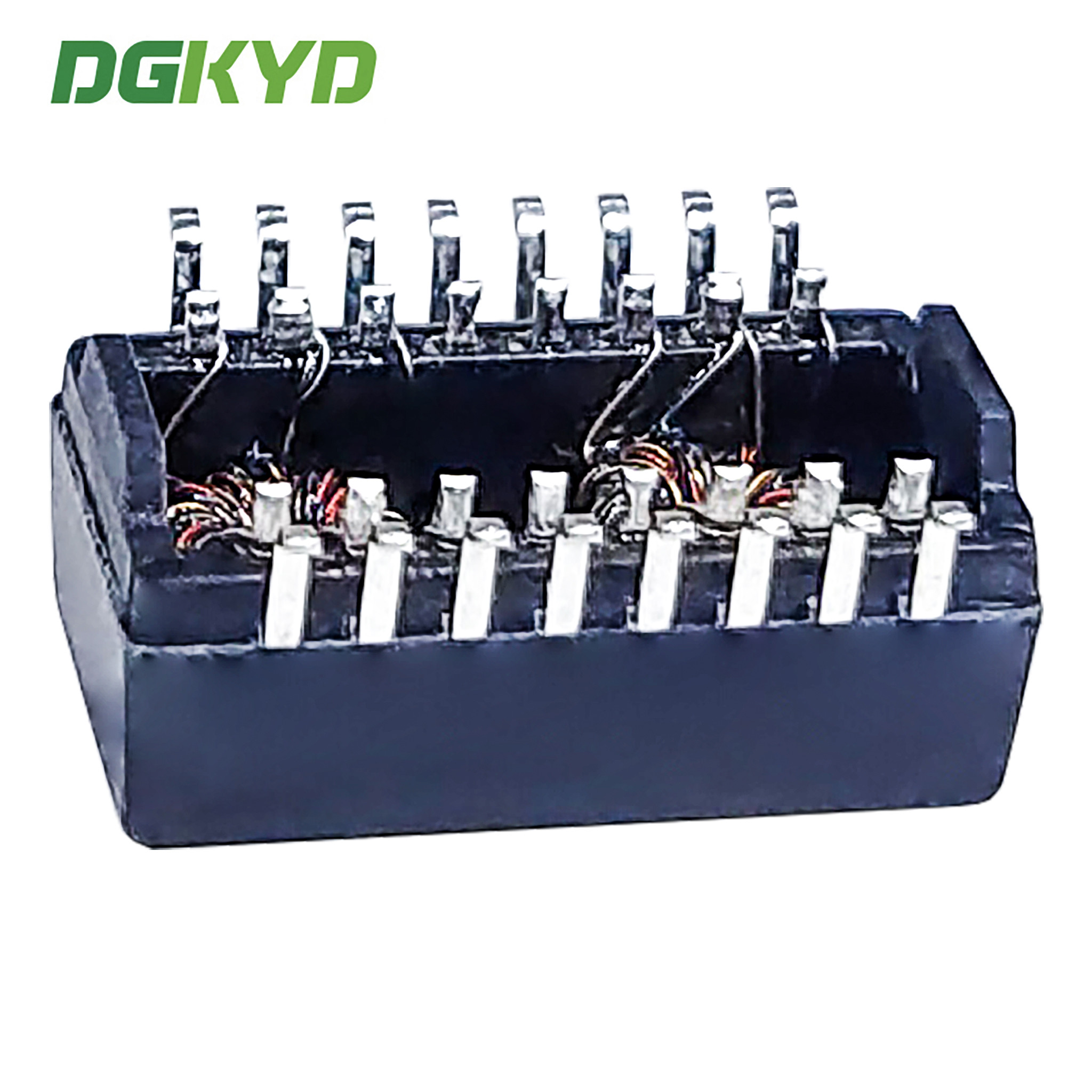

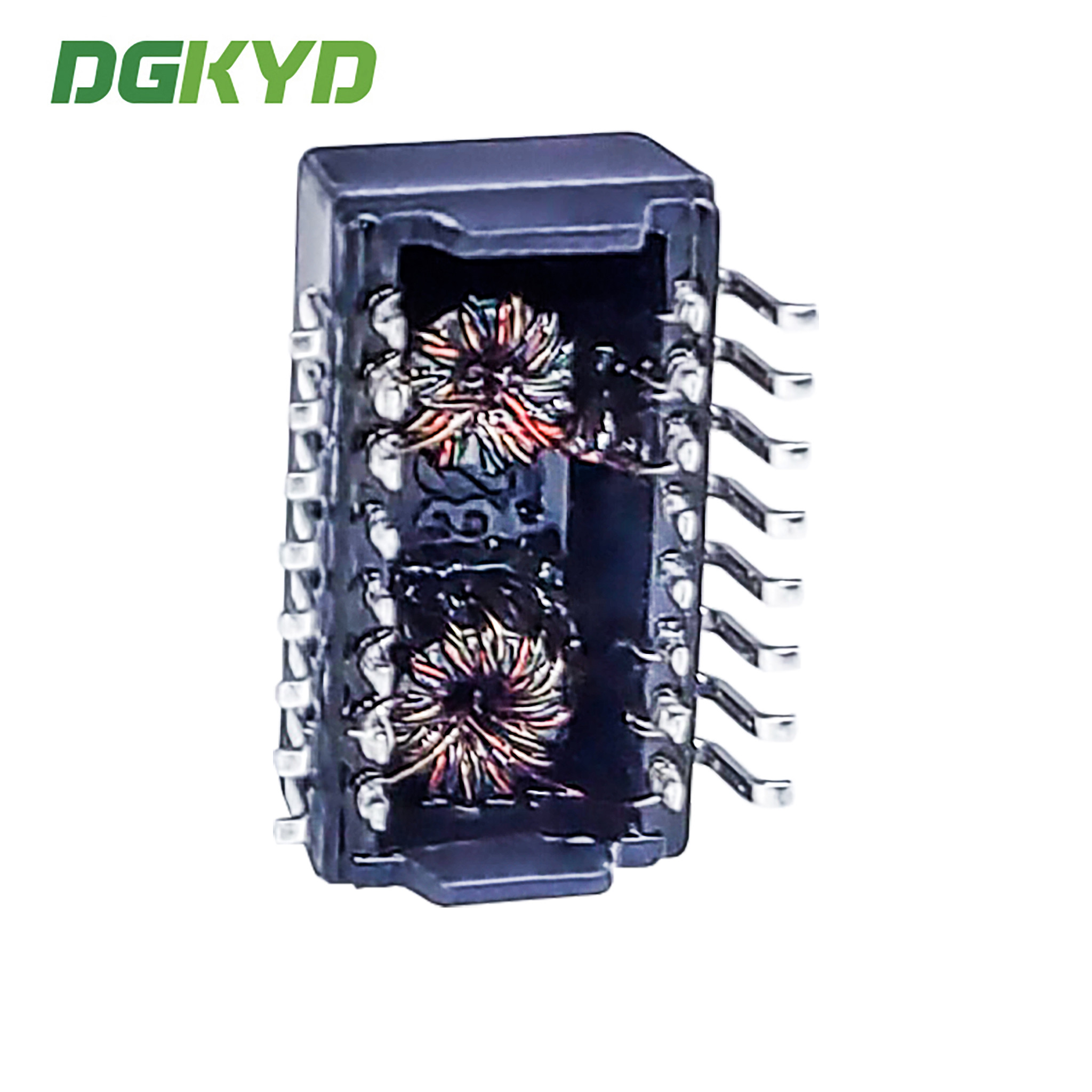

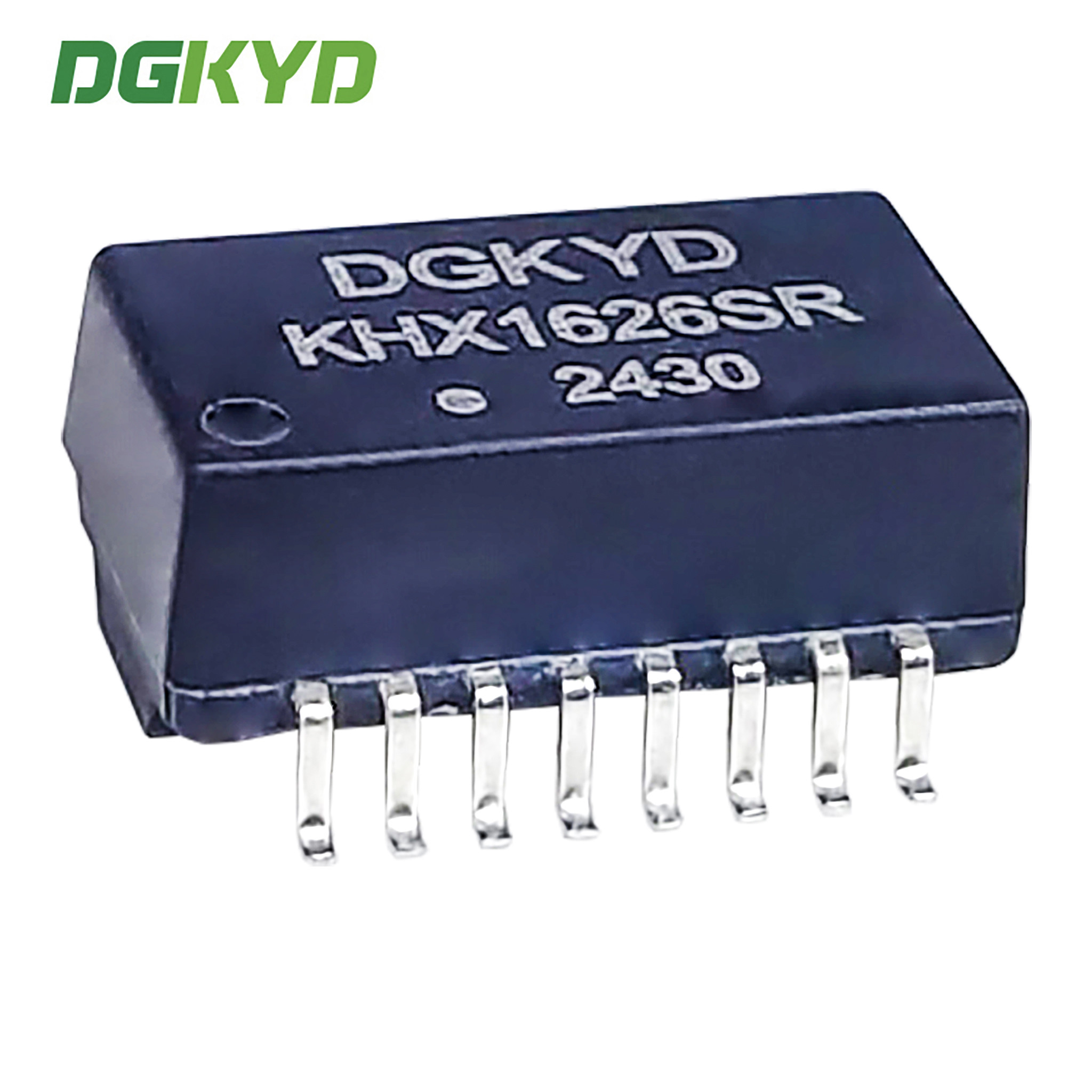

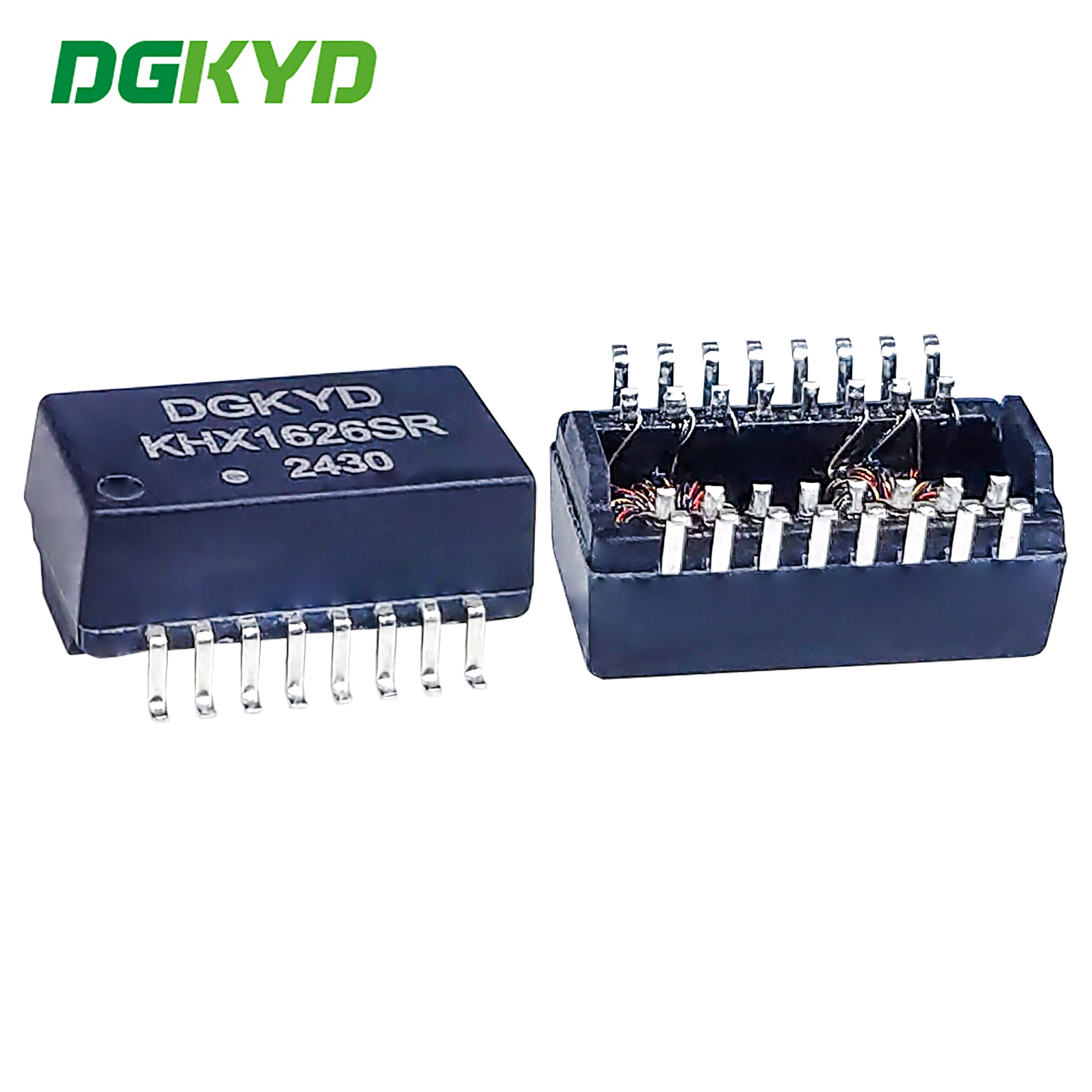

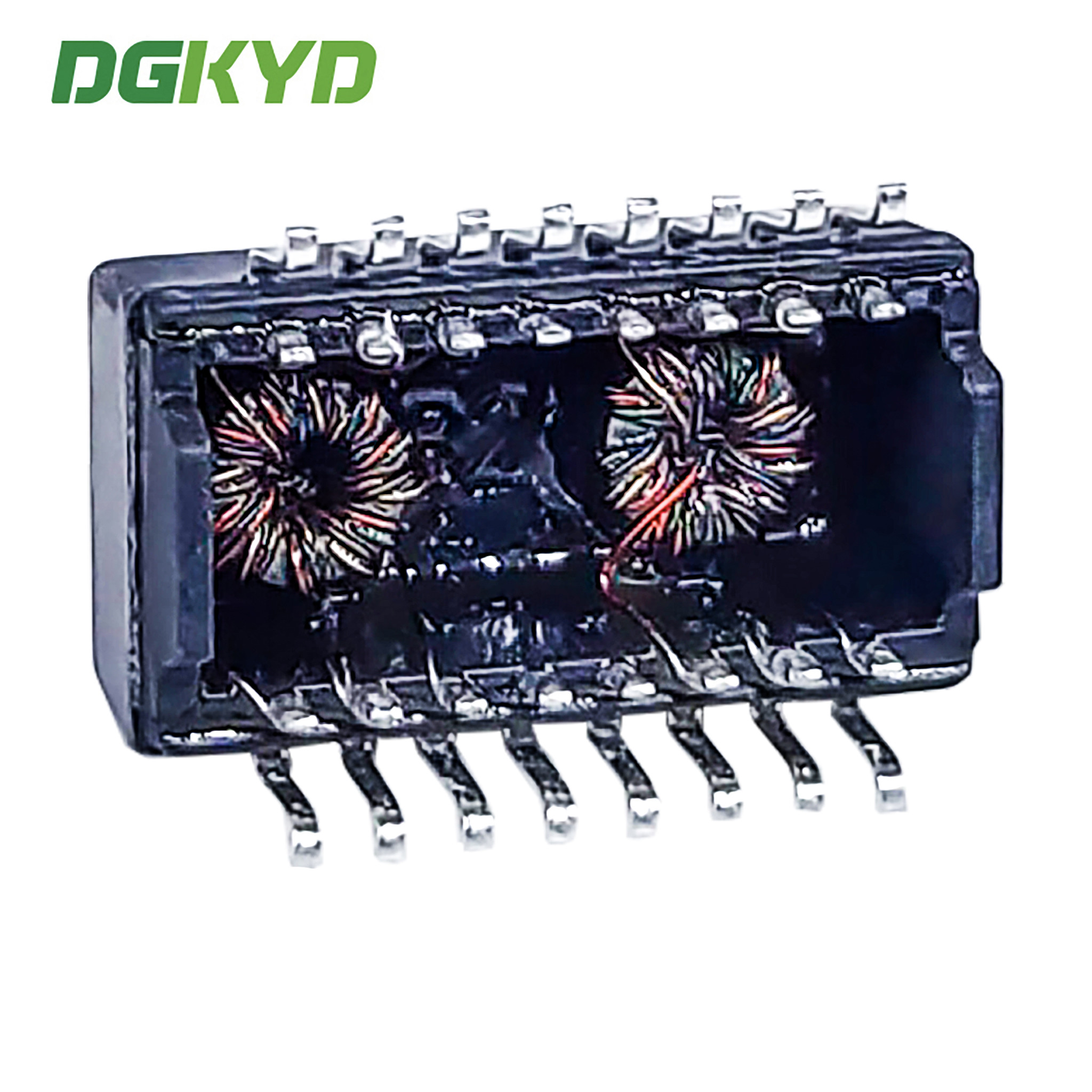

KHX1626SR 100M Base-T Network Transformer Ethernet Isolation Filter Ethernet Transformer SMD

Hubungi sekarang

KHX1626SR 100M Base-T Network Transformer Ethernet Isolation Filter Ethernet Transformer SMD

Kuantitas min Order :	Negosiasi	Harga :	Please contact us to get the latest price.
Kemasan rincian :	Baki dalam Karton	Waktu pengiriman :	10 HARI
Syarat-syarat pembayaran :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Menyediakan kemampuan :	100 ribu buah/hari

Tempat asal:	DongGuan dari Tiongkok	Nama merek:	DGKYD
Sertifikasi:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Nomor model:	KHX1626SR

Informasi Detail
Jenis Produk:	Transformator Ethernet	Metode enkapsulasi:	Kemasan pita gulung
Gaya Pemasangan PCB:	SMD	Bentuk:	persegi panjang
jumlah PIN:	16 PIN	Kecepatan Trafo Lan:	100 BASE-TX
Suhu operasi:	-40~+85°C opsional	Kuantitas Inti:	2 set
Menyoroti:	Transformer Ethernet SMD , Ethernet Isolation Filter Transformer Jaringan , KHX1626SR Transformer Jaringan

Deskripsi Produk

KHX1626SR100M Base-T Network Transformer Ethernet Isolation Filter Ethernet Transformer SMD

Product Specification Document

Parameters

Part Number	KHX1626SR	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS
Product Type	Transformer Modular	Transformer Style	Discrete Transformer
Core Quantity	2 pairs	PIN quantity	16
Lan Transformer Speed	10/100 BASE-TX	Mounting Type	SMD

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: - 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

1. Business mode: Manufacturer

2. Delivery time: on time delivery, around two weeks.

3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)>

Shield with EMI fingers or not

coil ratio of magnetic core

magnetics circuit diversification optional

contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

plastic housing material (PBT,PA46,PA9T, LCP)

4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Performance parameters:

1. Applied to Ethernet, coil ratio: 1CT: 1CT

2. Meet IEEE 802.3 & ANSI X 3.263 standard

3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias

4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard

5. Withstand voltage: 2250VDC 1mA max, 60s

6.Impedance: 100 ohms

7. RJ45 interface meets FCC 68.5 standard

8. DC resistance: 1.5 Ω
