Shield Right Angle Extra Low Profile Rj45 Ethernet Connector, 8p8c Jack SMD KRJ-72A75MMNL

Kuantitas min Order :	1 buah	Harga :	Please contact us to get the latest price.
Kemasan rincian :	Baki di Karton	Waktu pengiriman :	10 hari
Syarat-syarat pembayaran :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Menyediakan kemampuan :	100K PC/hari

Tempat asal:	Dongguan of China	Nama merek:	DGKYD
Sertifikasi:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Nomor model:	KRJ-72A75MMNL

Informasi Detail
Konfigurasi Port:	lajang	Gaya konektor:	Mendongkrak
Jenis kelamin:	Perempuan	Kategori kinerja:	CAT3
Transformator:	Tidak ada	Profil tinggi:	profil ekstra rendah
Jumlah posisi/kontak:	8P8c (RJ45, Ethernet)	Gaya Gunung:	Smt
Pelapisan emas pada pin kontak:	G/Fu	Suhu penyimpanan:	-40 ° C ~+85 ° C.
Suhu operasi:	-40 ° C ~+85 ° C.
Menyoroti:	right angle RJ45 SMD connector , low profile RJ45 jack , 8p8c Ethernet connector SMD

Deskripsi Produk

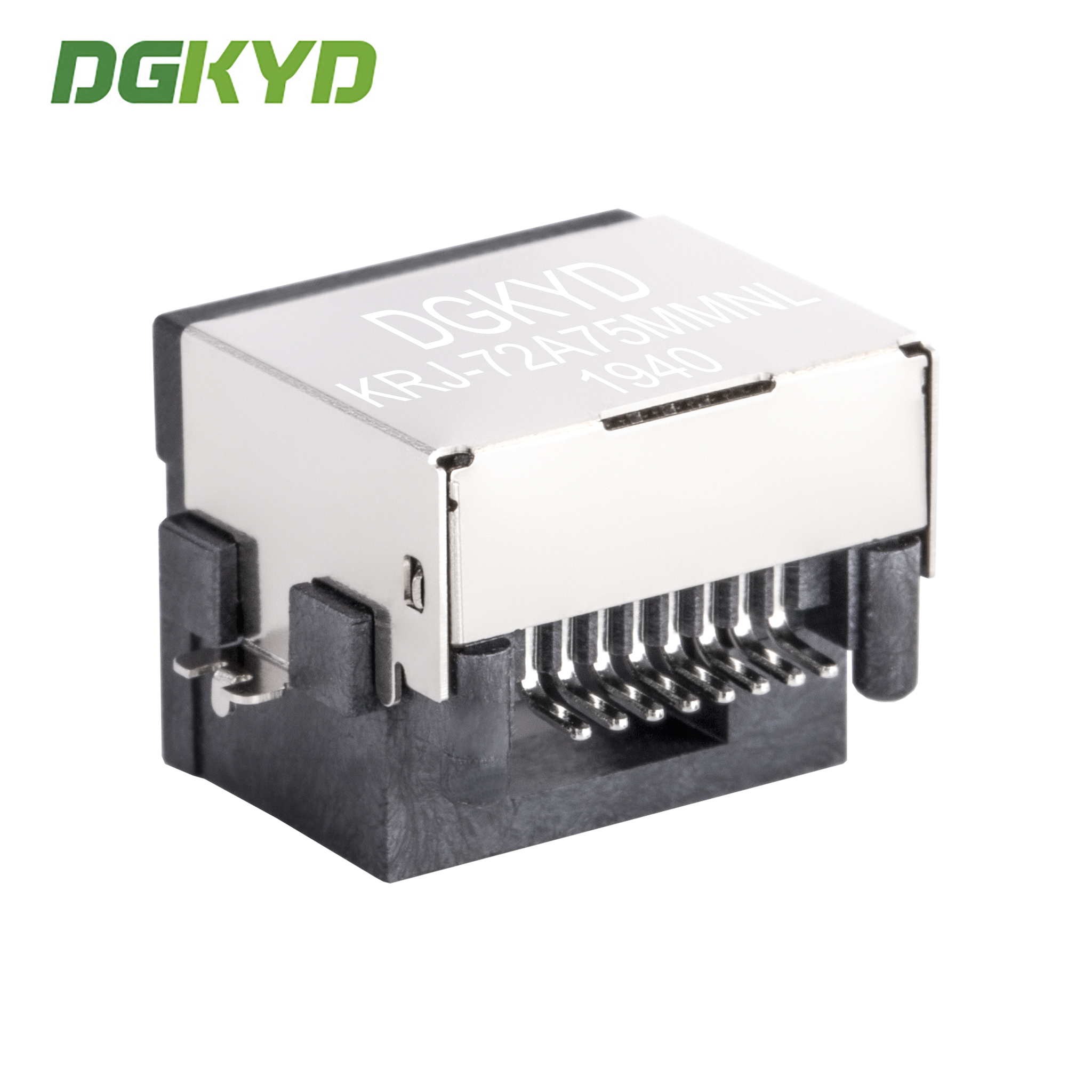

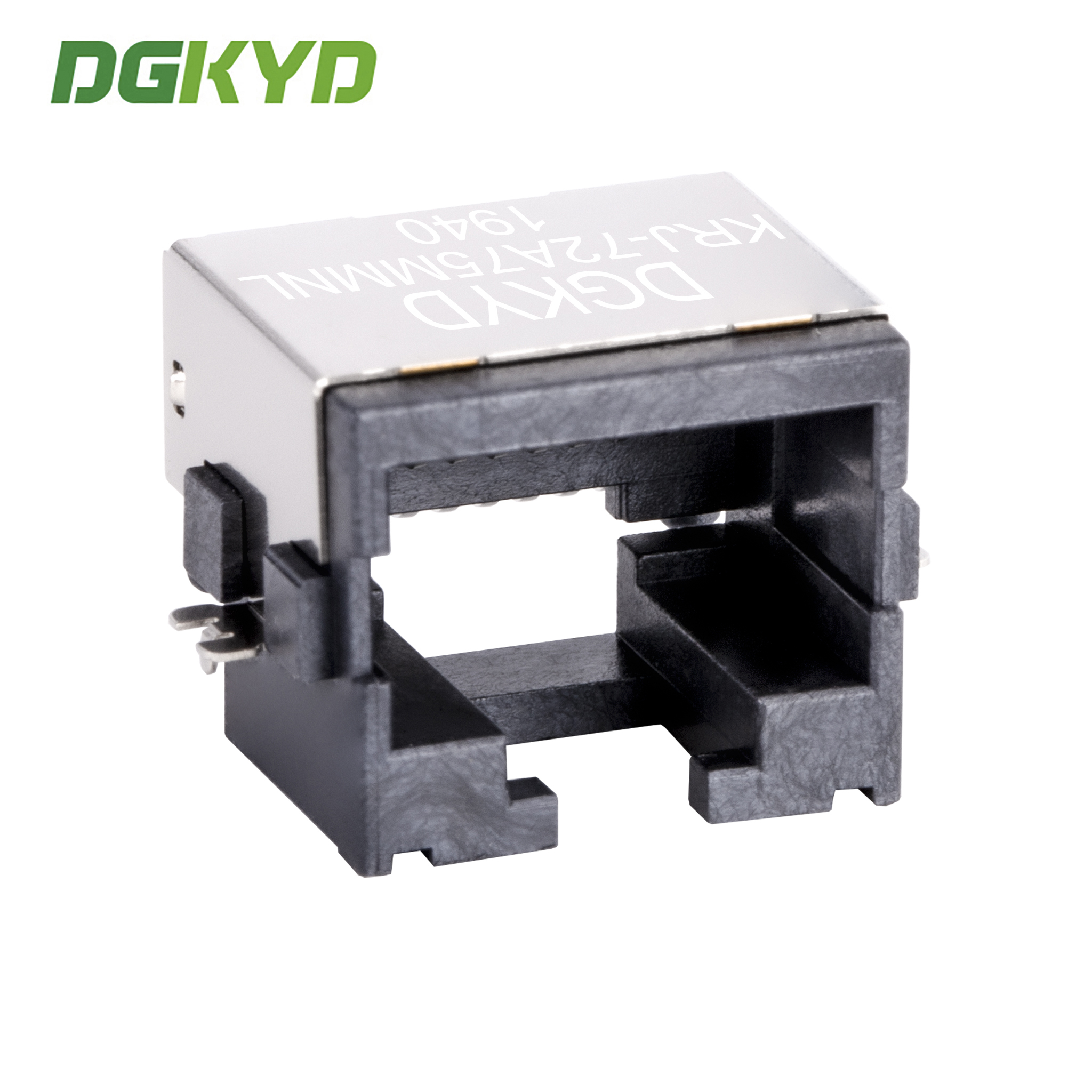

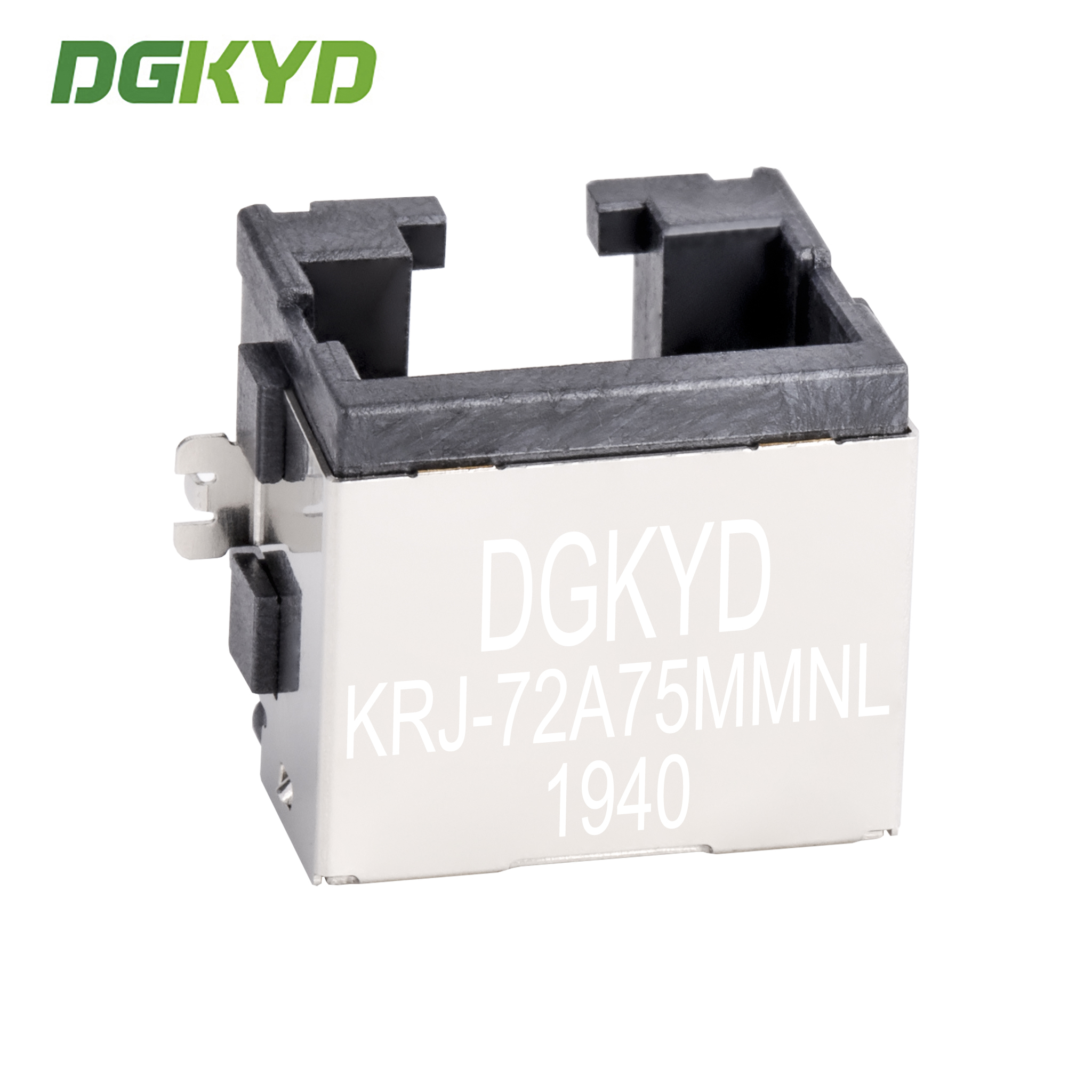

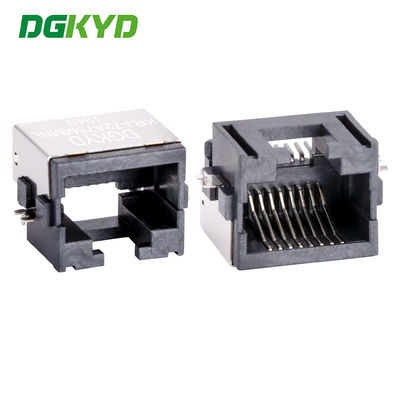

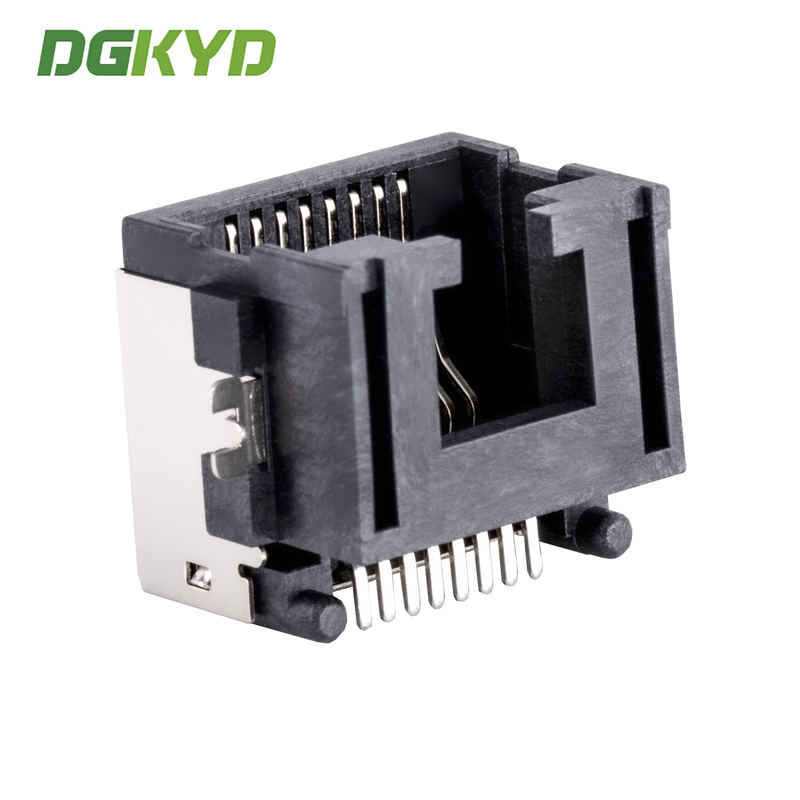

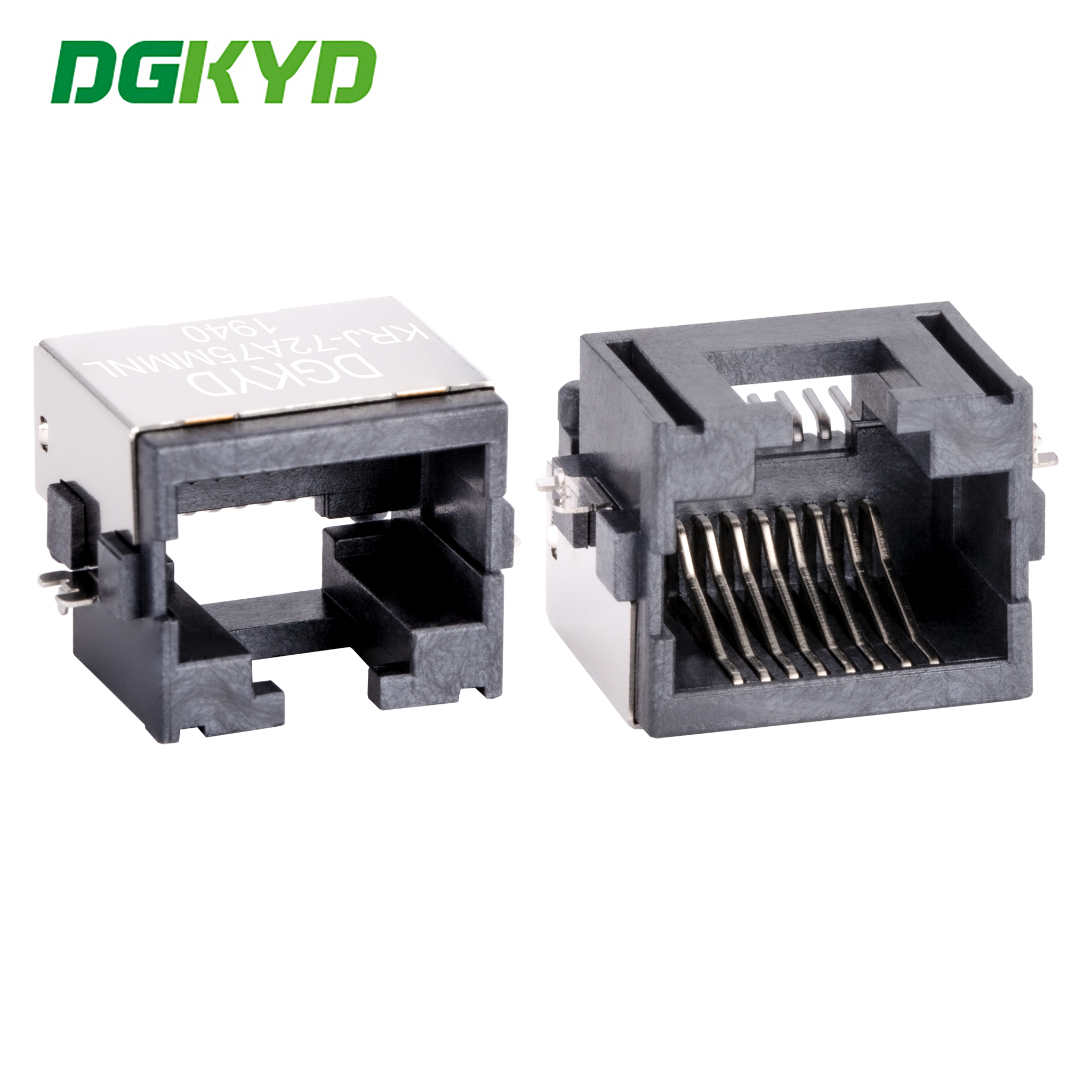

Shield Right Angle Extra Low Profile Rj45 Ethernet Connector, 8p8c Jack SMD KRJ-72A75MMNL

Product Description

Shield Right Angle Extra Low Profile Rj45 Ethernet Connector, 8p8c Jack SMD KRJ-72A75MMNL

Product Specification Document

Parameters

Part Number	KRJ-72A75MMNL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printedout Circuit Board
Port Configuration	SIngle Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold G/Fu	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	LCP Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Product Features

Interface type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working frequency: High frequency with filtering and anti-interference characteristics
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead-free soldering: Wave soldering height up to 265℃

Manufacturing Advantages

Full series of RJ45 integrated circuit accessories
Manufacturer direct supply
Business mode: Manufacturer
Delivery time: Approximately two weeks
Customization options available:
- LED indicator light (green, yellow, red, orange, blue, bi-color)
- Shield with or without EMI fingers
- Magnetic core coil ratio options
- Diverse magnetics circuit options
- Contact gold plating options (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material options (PBT, PA46, PA9T, LCP)
Products meet industry standards for electrical properties, appearance, mechanical properties, and environmental protection

Frequently Asked Questions

Q: Are you trading company or manufacturer?

A: We are manufacturer. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
