Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB

Kuantitas min Order :	Bisa dinegosiasikan	Harga :	Dapat dinegosiasikan
Kemasan rincian :	Baki dalam Karton	Waktu pengiriman :	7-14 hari
Syarat-syarat pembayaran :	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Menyediakan kemampuan :	60000pcs per hari

Tempat asal:	DongGuan dari Tiongkok	Nama merek:	DGKYD
Sertifikasi:	RoHS/CE/FCC/CE/ISO9001/ISO14001	Nomor model:	DGKYDCB421188AB1W6SB

Informasi Detail
Nama produk:	Jack Konektor RJ45 Dengan Perisai	Jenis konektor:	Mendongkrak
Aplikasi:	PC, router, jaringan hub usb rj45 dll.	Jenis kelamin:	Perempuan
Transformator:	RJ45 tanpa Trafo	PROFIL TINGGI:	profil ekstra rendah
Menyoroti:	Countersunk 4.2 SMT RJ45 Connector , RJ45 Connector Jack With Shield , Single RJ45 Connector Jack

Deskripsi Produk

RJ45 connector single countersunk 4.2 SMD With shield With LED 8p8c

Paramters

ATTRIBUTE	ATTRIBUTE VALUE
TEMPERATURE	-40 to +85℃
GROUNDING OPTIONS	Panel Ground and PCB Ground
SHIELD PLATING MATERIAL	NICKEL
SHIELD EMI TABS	YES
SHIELD	METAL SHIELD
ROHS COMPLIANT	YES
PANEL STOP	NONE
PCB MOUNT ANGLE	SIDE ENTRY
PACKAGE	SMT
CONNECTOR & CONTACT TERMINAATES TO	Printed Circuit Board
NUMBER OF PORTS	1X1
NUMBER OF CONTACTS	8
LED OPTION	L-Yellow / R-Green
LATCH ORIENTATION	LATCH DOWN
HOUSING MATERIAL	LCP UL94V-0
CONTACT MATING AREA PLATING	GOLD FLASH PLATING
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK

Drawing

Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB 0

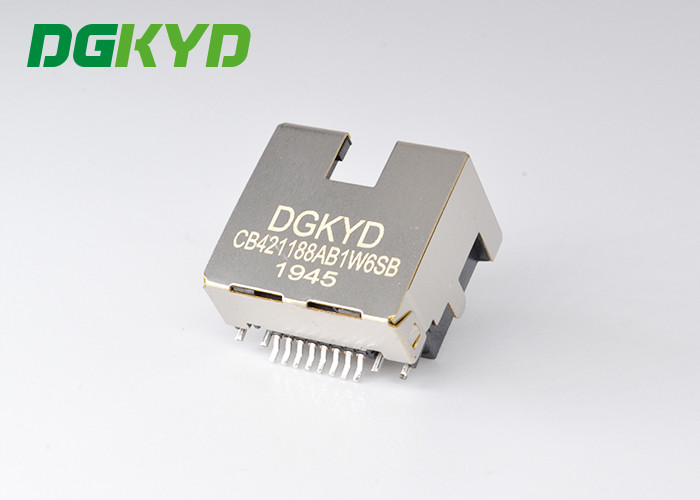

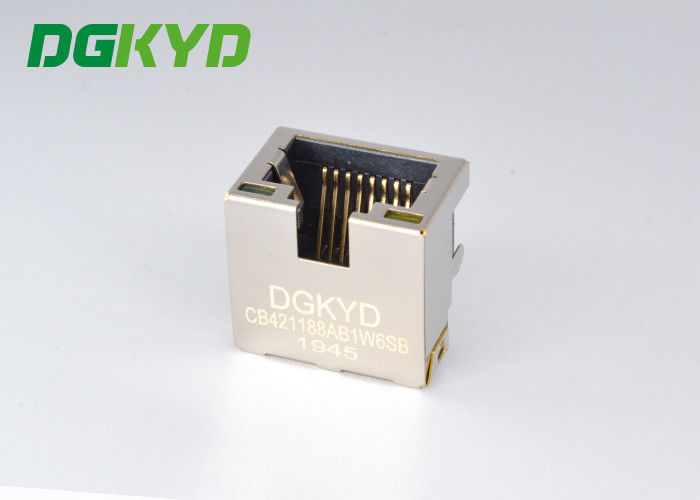

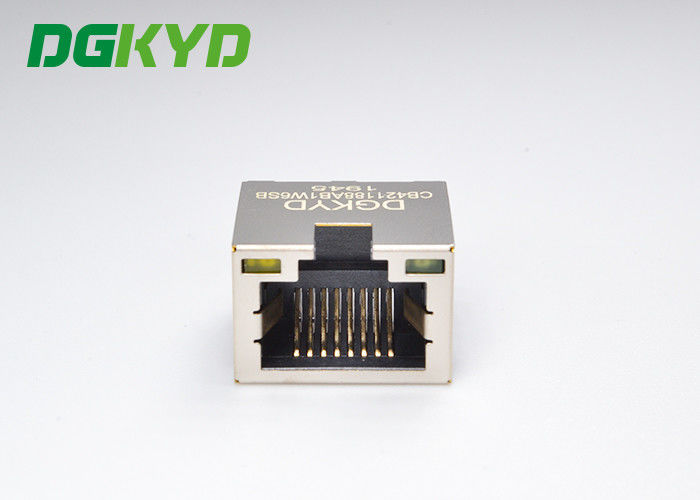

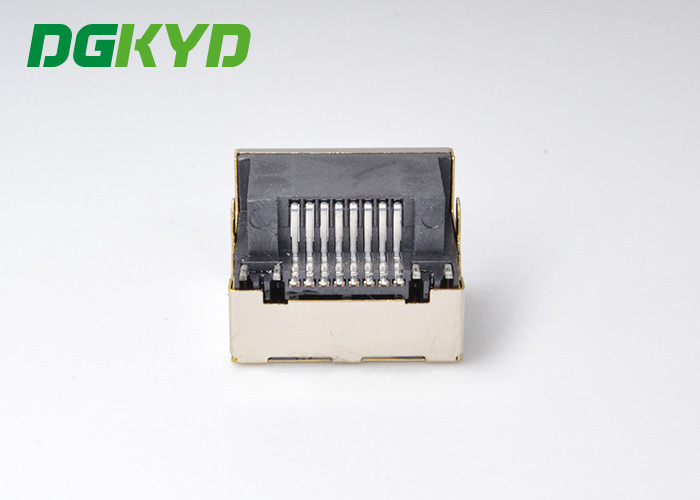

Pictures

Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB 1
