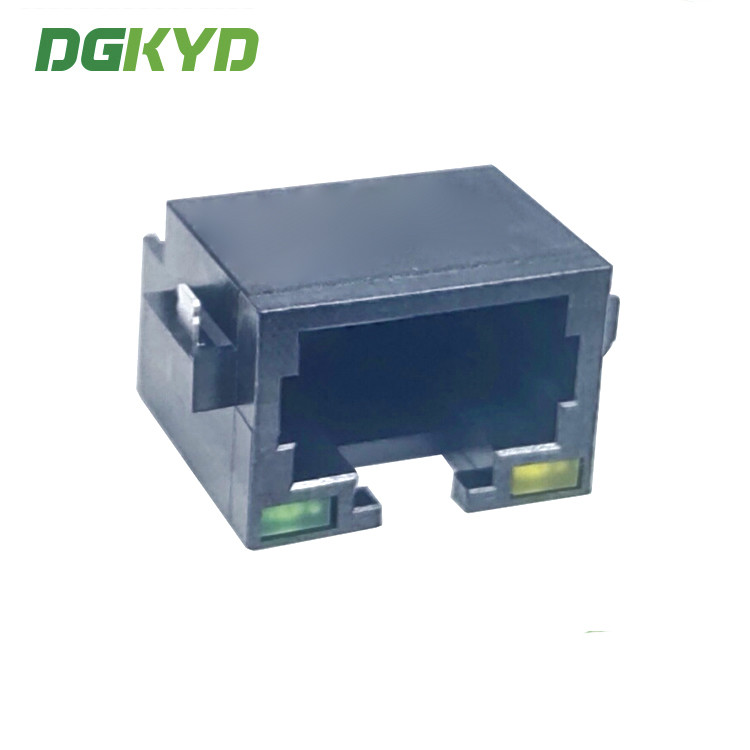

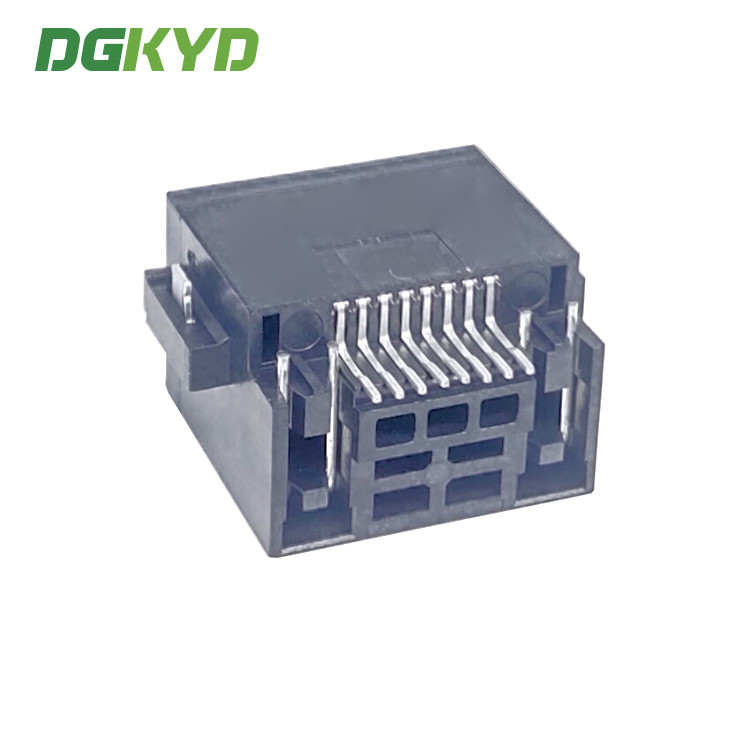

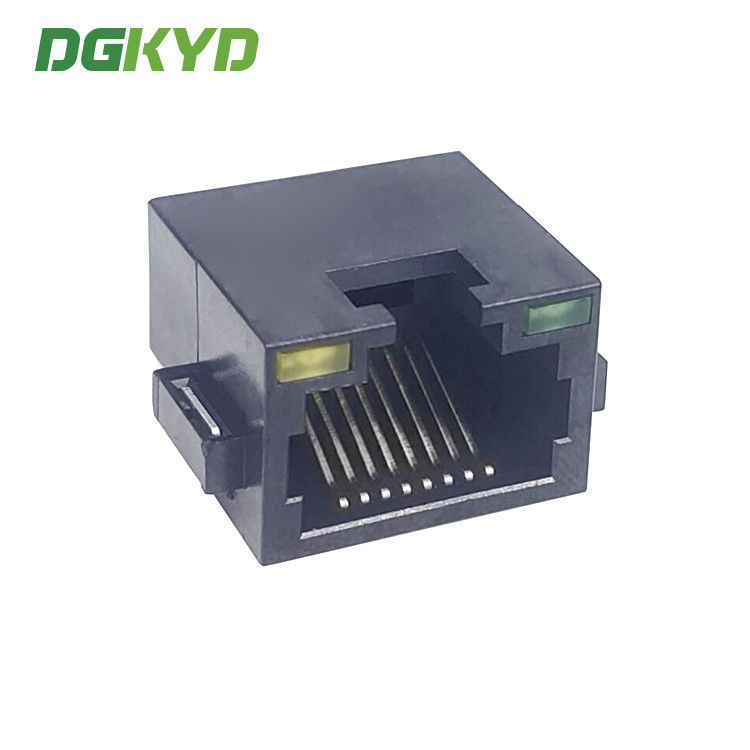

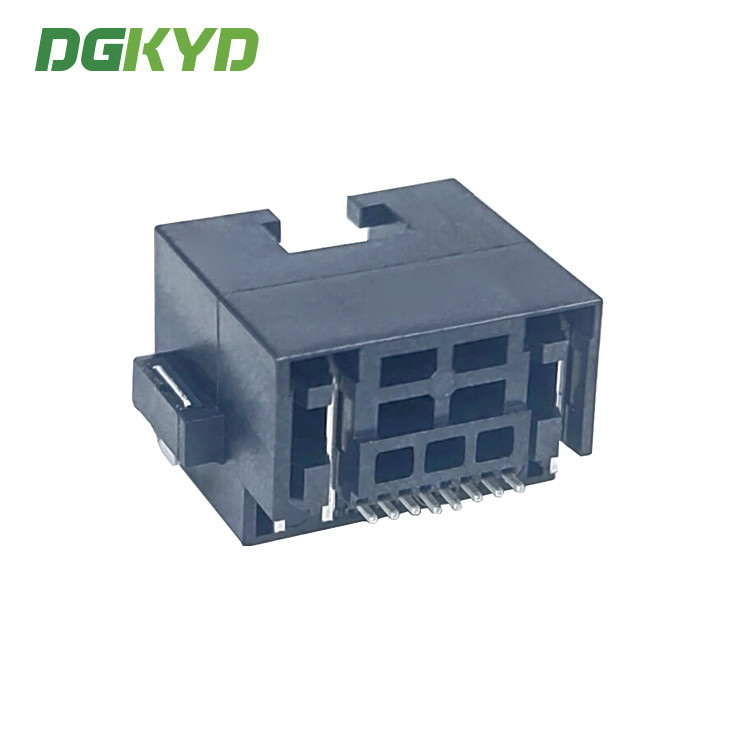

DGKYDCB821188JB1W6SB1057 8.2 Sink Plate Connector RJ45 Socket All Plastic LED Lamp SMD

Kuantitas min Order :	1 buah	Harga :	Please contact us to get the latest price.
Kemasan rincian :	Baki dalam Karton	Waktu pengiriman :	10 HARI
Syarat-syarat pembayaran :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Menyediakan kemampuan :	100 ribu buah/hari

Tempat asal:	DongGuan dari Tiongkok	Nama merek:	DGKYD
Sertifikasi:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Nomor model:	DGKYDCB821188JB1W6SB1057

Informasi Detail
Aplikasi:	PCB	Fitur:	Port jaringan RJ45 terlindung
Jenis kelamin:	rj45 Wadah betina	Nama produk:	Jack Modular RJ45
Bahan Perumahan:	LCP	Warna led:	Kuning hijau
Memalangi:	Di atas.	Hubungi Plating:	Glod plating 6u/15u/30u/50u
Menyoroti:	LED Lamp RJ45 Socket , All Plastic RJ45 Socket , 8.2 Sink Plate Connector RJ45 Socket

Deskripsi Produk

DGKYDCB821188JB1W6SB1057 8.2 sink plate connector RJ45 socket all-plastic LED lamp

J45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
1. Business mode: Manufacturer
2. Delivery time: on time delivery, around two weeks.
3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
coil ratio of magnetic core
magnetics circuit diversification optional
contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
plastic housing material (PBT,PA46,PA9T, LCP)
Parameters

Part Number	DGKYDCB821188JB1W6SB1057	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	Without Filter	LED Option	With LED
LED Color	Yellow/Green	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	LCP Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Drawings

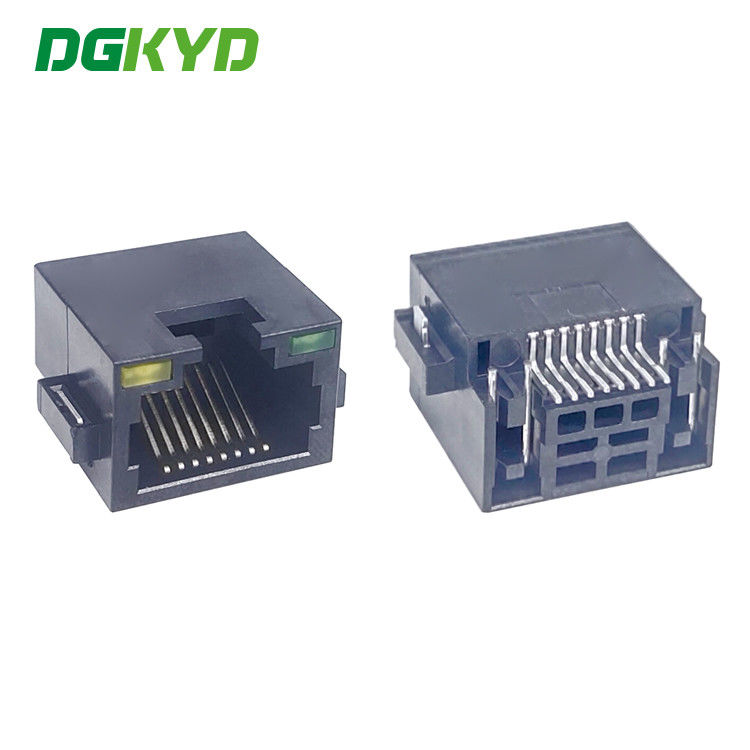

DGKYDCB821188JB1W6SB1057 8.2 Sink Plate Connector RJ45 Socket All Plastic LED Lamp SMD 0

FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
