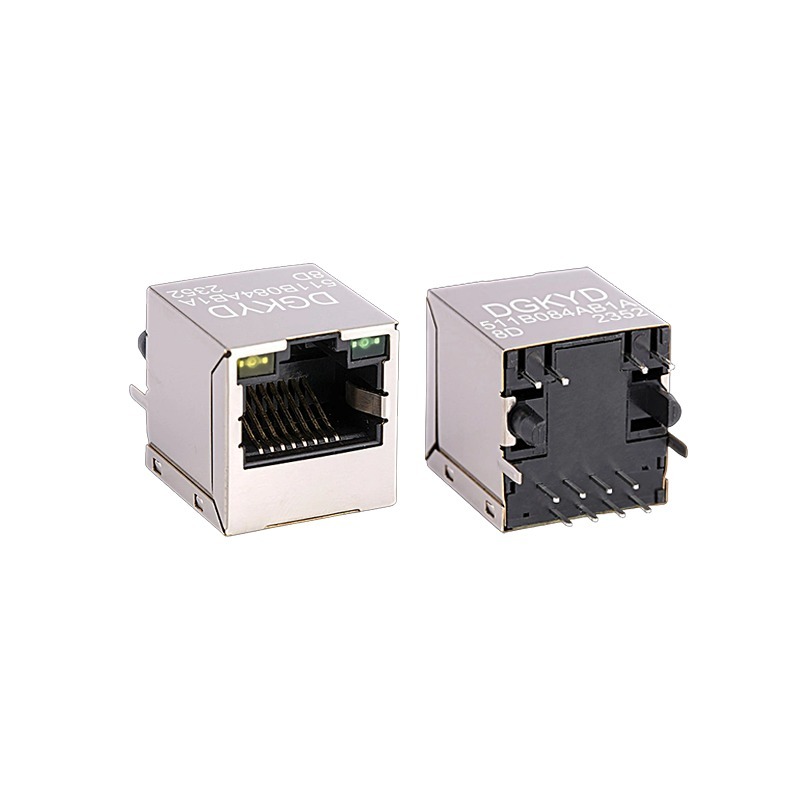

RJ45 Female Connector 180-Degree Vertical with 100Mbps Filter

Kuantitas min Order :	1

Tempat asal:	Guangdong, Cina	Nama merek:	DGKYD
Nomor model:	DGKYD511B084AB1A8D

Informasi Detail
Tipe konektor:	RJ45	Jenis kelamin:	Perempuan
Warna LED:	kuning/hijau	Pelapis:	Pelapisan Emas 6U/15U/30U/50U
Bahan perumahan:	Poliester PBT	Menyaring:	Dengan Filter
Gaya Kait:	Standar	Memalangi:	Ke atas
Kecepatan Kinerja:	10/100/1000/10G Base-t	Konfigurasi Port:	lajang
Jumlah posisi:	8	Terminal per Port:	8
Bahan Perisai:	Paduan Tembaga dilapisi dengan Nikel	orientasi pemasangan PCB:	Entri samping (sudut kanan)
Bahan Dasar Kontak:	Perunggu fosfor
Menyoroti:	RJ45 female connector 180-degree vertical , RJ45 connector with 100Mbps filter , single port RJ45 vertical connector

Deskripsi Produk

180-Degree Vertical RJ45 Ethernet Connector Jack-Up Orientation with 100Mbps Integrated Filter

Product Specifications

Part Number	DGKYD511B084AB1A8D
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Connector Assembly
Latch Style	Standard
Latch	Up
Filter	With Filter
LED Option	With LED
LED Color	Yellow/Green
Panel Stops	Without Panel Stops
Shielded	Yes
Applies To	Printed Circuit Board
Performance Speed	10/100/1000/10G BASE-T
Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single
Number of Positions	8
Jack Configuration	1 x 1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)

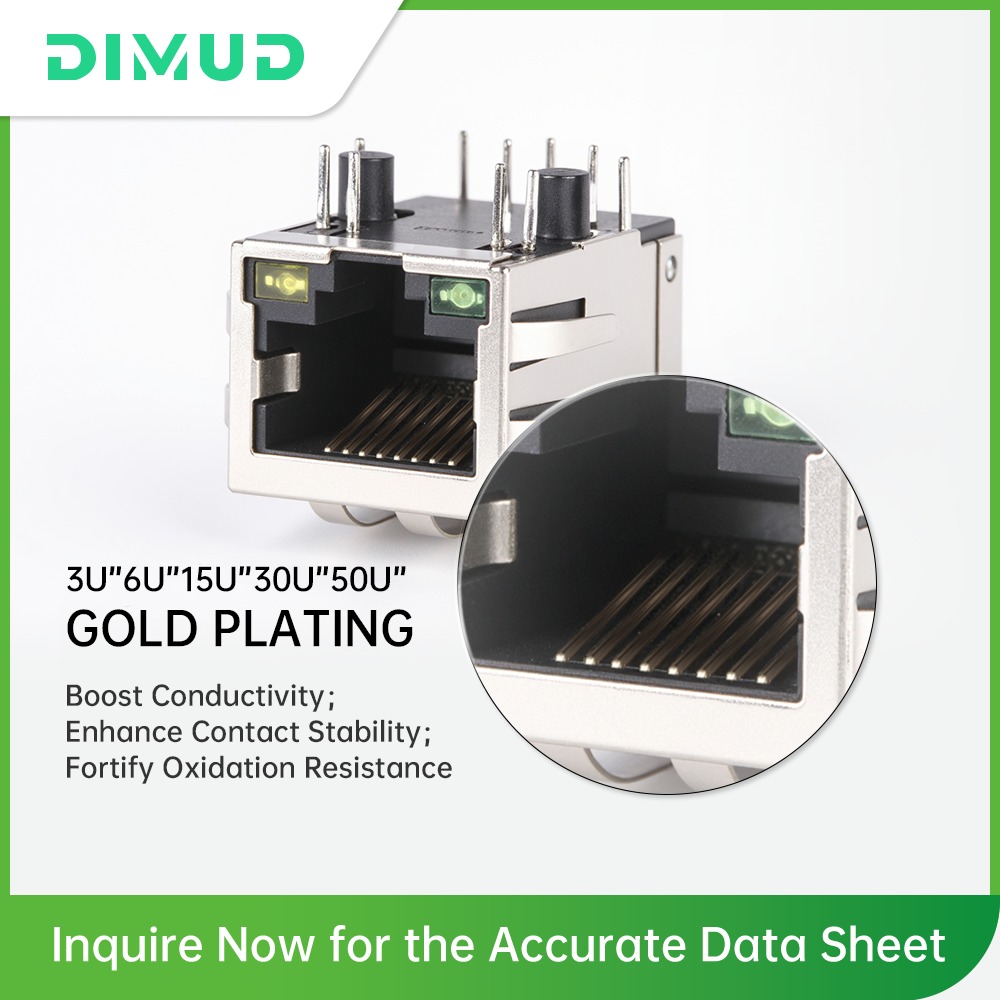

Contact Mating Area Plating Material	Gold 6u/15u/30u/50u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0
