180 Degree 8P8C RJ45 Connector with LED Green/Yellow for PCB Mount

Kuantitas min Order :	1	Harga :	$0.20-0.30

Tempat asal:	Guangdong, Cina	Nama merek:	DGKYD
Nomor model:	DGKYD52241188AC2A3DY1027, konektor jack

Informasi Detail
Jenis:	RJ45, Header dan Wadah PCB	Warna LED:	Hijau kuning
Pelapis:	Pelapisan Emas G/Fu	Bahan perumahan:	PA46 Poliester
Gaya Kait:	Standar	Memalangi:	TAB-Atas
Menyaring:	Tanpa Filter	Opsi LED:	Dengan LED
Kecepatan Kinerja:	10/100/1000/10G Base-t	Jumlah posisi:	8
Terminal per Port:	8	Bahan Perisai:	Paduan Tembaga dilapisi dengan Nikel
Hubungi pelapisan perkawinan:	Emas g/fu	Bahan Dasar Kontak:	Perunggu fosfor
Suhu operasi:	-40 ℃ ~ 85 ℃
Menyoroti:	RJ45 connector with LED , PCB mount RJ45 connector , 8P8C RJ45 connector green yellow

Deskripsi Produk

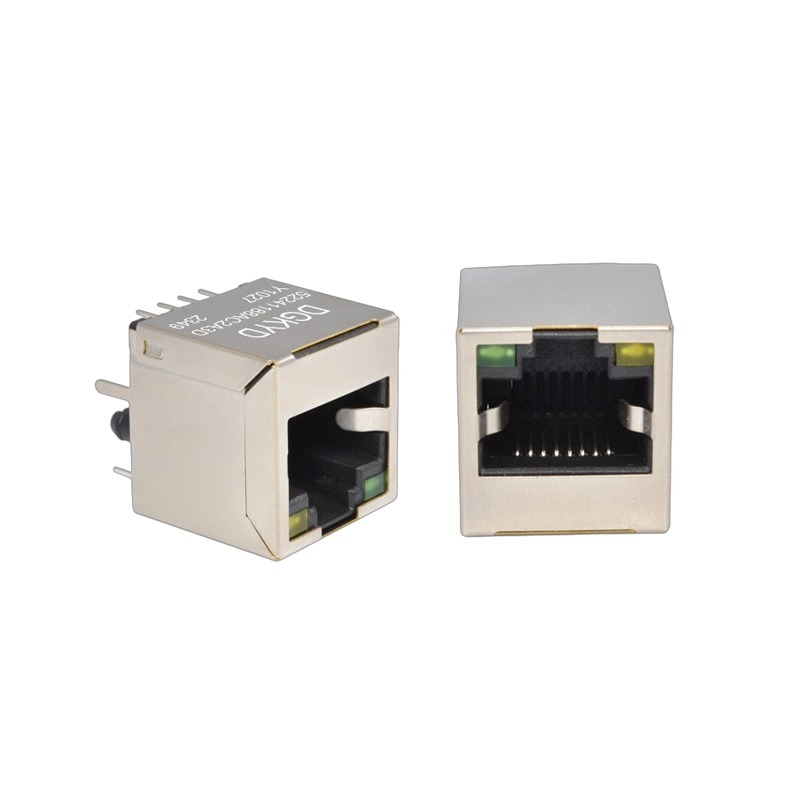

180 Degree Direct Insertion 8P8C LED Light RJ45 Network Interface Jack Modular Connector

This 180 degree direct insertion RJ45 connector (8P8C) features LED lights and is designed for network interface applications. The part number is DGKYD52241188AC2A3DY1027.

Product Specifications

Part Number	DGKYD52241188AC2A3DY1027
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-UP
Filter	Without Filter
LED Option	With LED
LED Color	Green/Yellow
Panel Stops	With Panel Stops
Shielded	Yes
Applies To	Printed Circuit Board
Performance Speed	10/100/1000/10G BASE-T
Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single ports
Number of Positions	8
Jack Configuration	1 x 1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)

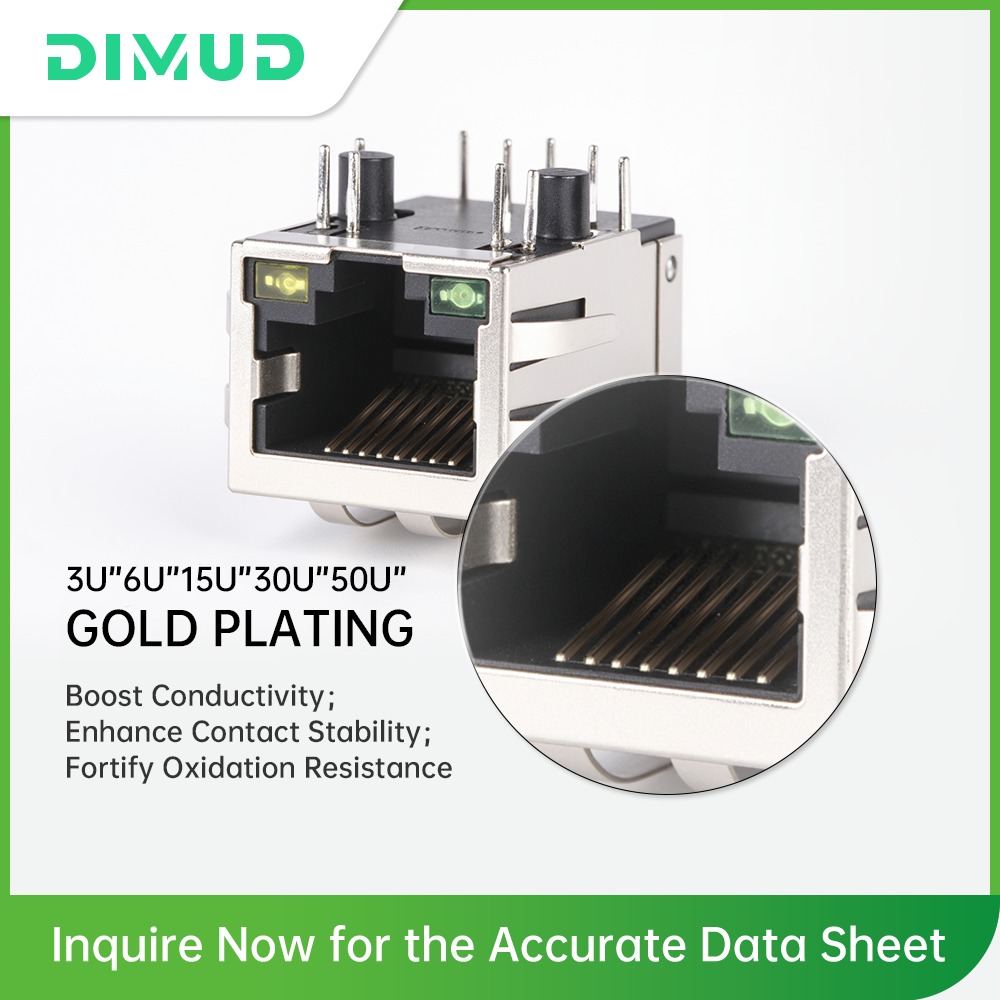

Contact Mating Area Plating Material	Gold G/Fu
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PA46 Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0
