Shielded Cat6 RJ45 Female Jack 6u Gold Plating Side Entry

Kuantitas min Order :	1	Harga :	$1-1.60

Tempat asal:	Guangdong, Cina	Nama merek:	DGKYD
Nomor model:	KRJ-300CNL

Informasi Detail
Jenis:	RJ45	Jenis kelamin:	Perempuan
Pelapisan Emas:	6U/15U/30U/50U untuk opsional	Bahan perumahan:	Poliester PBT
Filter internal:	Ya	Gaya Kait:	Standar
Memalangi:	Ke atas	Menyaring:	Dengan Filter
Opsi LED:	Tanpa led	Terlindung:	Ya
Kecepatan Kinerja:	1000 base-t	Konfigurasi Port:	lajang
Jumlah posisi:	10	Terminal per Port:	8
Bahan Perisai:	Paduan Tembaga dilapisi dengan Nikel
Menyoroti:	Shielded Cat6 RJ45 female jack , 6u gold plating RJ45 connector , side entry RJ45 single port

Deskripsi Produk

Shielded Single Port Cat6 RJ45 Ethernet Connector - Side Entry Female Jack with LED & Internal Magnetics Transformer

High-performance shielded RJ45 connector designed for Cat6 Ethernet applications, featuring side entry configuration, LED indicator, and integrated magnetics transformer.

Product Specifications

Part Number	KRJ-300CNL
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	CE /UL/FCC/Reach/RoHS /ISO16949
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	Up
Filter	With Filter
LED Option	Without LED
LED Color	N/A
Panel Stops	Without Panel Stops
Shielded	Yes
Applies To	Printed Circuit Board
Performance Speed	1000 BASE-T
Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single
Number of Positions	10
Jack Configuration	1 x 1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

Product Images

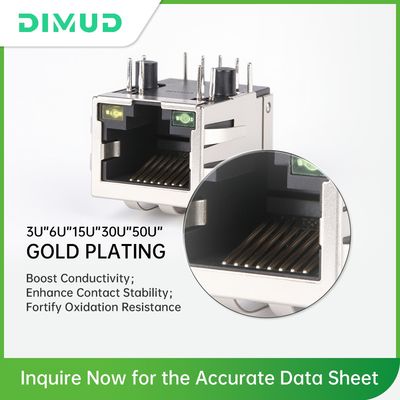

Shielded Cat6 RJ45 Female Jack 6u Gold Plating Side Entry

Shielded Cat6 RJ45 female jack

6u gold plating RJ45 connector

side entry RJ45 single port
