Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C

Kuantitas min Order :	1	Harga :	$0.51-0.85

Tempat asal:	Guangdong, Cina	Nama merek:	DGKYD
Nomor model:	KRJ-406CNL

Informasi Detail
Jenis:	RJ45	Jenis kelamin:	Perempuan
Bahan perumahan:	PBT HITAM	Pelapisan kontak:	Emas 6U ''
Bahan Perisai:	Paduan Tembaga dilapisi dengan Nikel	Opsi LED:	Dengan LED
Warna LED:	Hijau kuning	Jumlah kontak:	8
Opsi Transformator:	Dengan Transformator	Kecepatan Kinerja:	10/100 Basis-T
Konfigurasi Port:	lajang	Metode Pemutusan:	Melalui hole-press-fit
Gaya pemasangan:	Melalui lubang	Orientasi pemasangan:	Entri samping (sudut kanan)
Peringkat Mudah Terbakar UL:	UL 94V-0
Menyoroti:	Industrial RJ45 female connector with LED , 8P8C RJ45 connector 10/100 Base-T , Single port RJ45 connector with warranty

Deskripsi Produk

Industrial Grade 10/100 Base T Ethernet Connectors

Surface Mount CAT5E RJ45 Female Connector with LEDs and Integrated Magnetics PCB

High-performance industrial-grade RJ45 connector designed for 10/100 BASE-T Ethernet applications. Features integrated magnetics, LED indicators, and robust construction for reliable operation in demanding environments.

Product Specifications

Part Number	KRJ-406CNL
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	ISO16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	Down
Filter	With Filter
LED Option	With LED
LED Color	Green & Yellow
Shielded	Yes
Performance Speed	10/100 BASE-T
Port Configuration	Single
Number of Positions	8
Shield Material	Copper Alloy preplated with Nickel
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u for optional
Contact Base Material	Phosphor Bronze
Housing Material	PBT Polyester
UL Flammability Rating	UL 94V-0

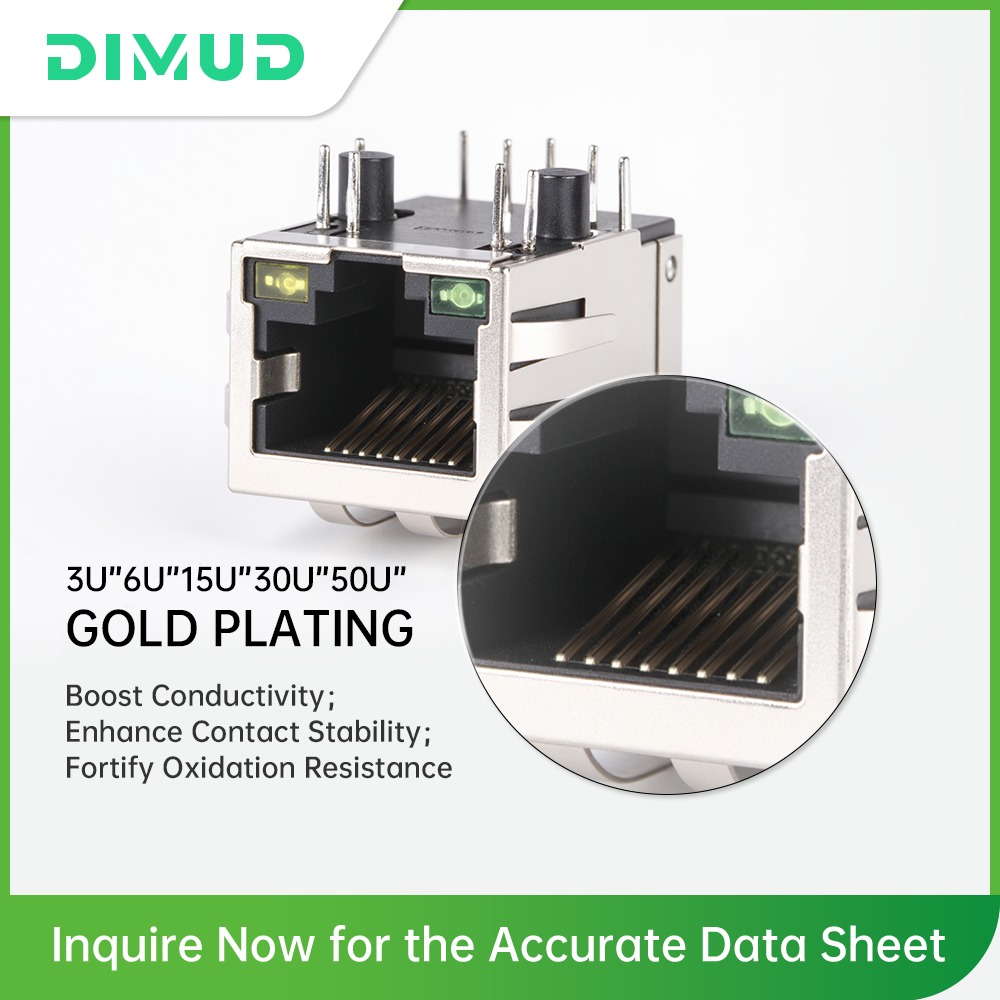

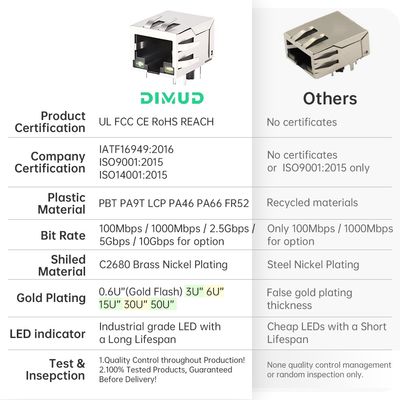

Product Images

Label:

Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C

Industrial RJ45 female connector with LED

8P8C RJ45 connector 10/100 Base-T

Single port RJ45 connector with warranty
