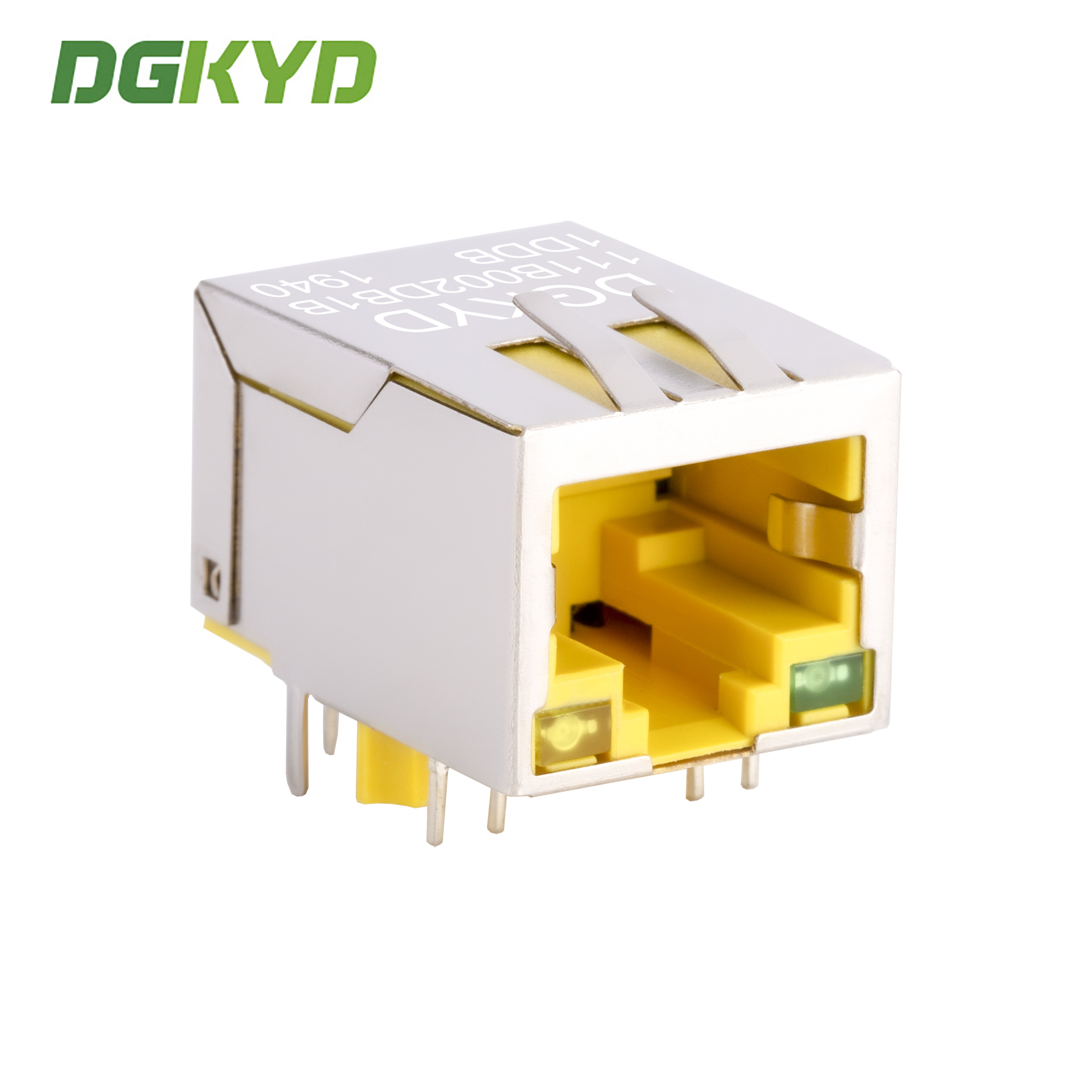

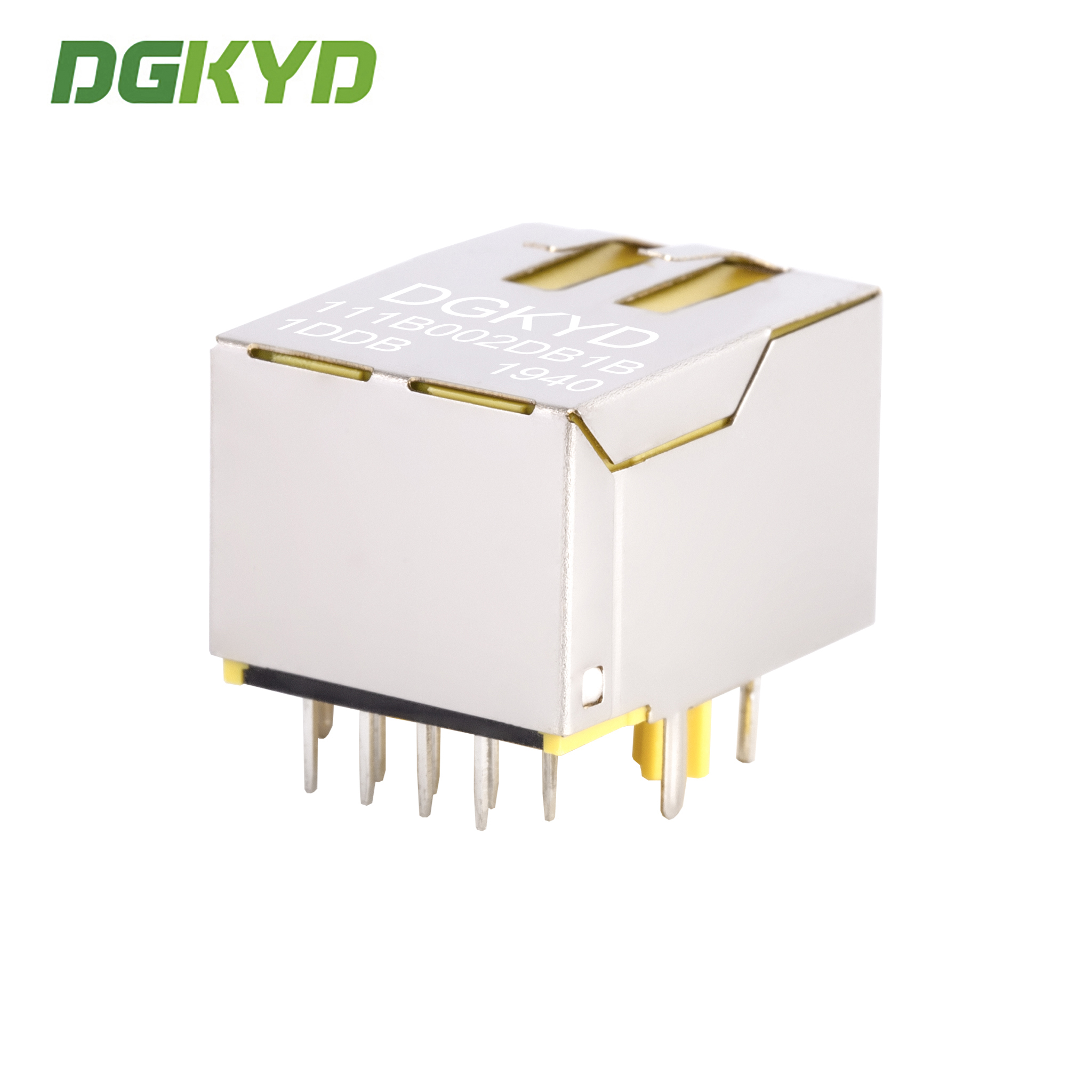

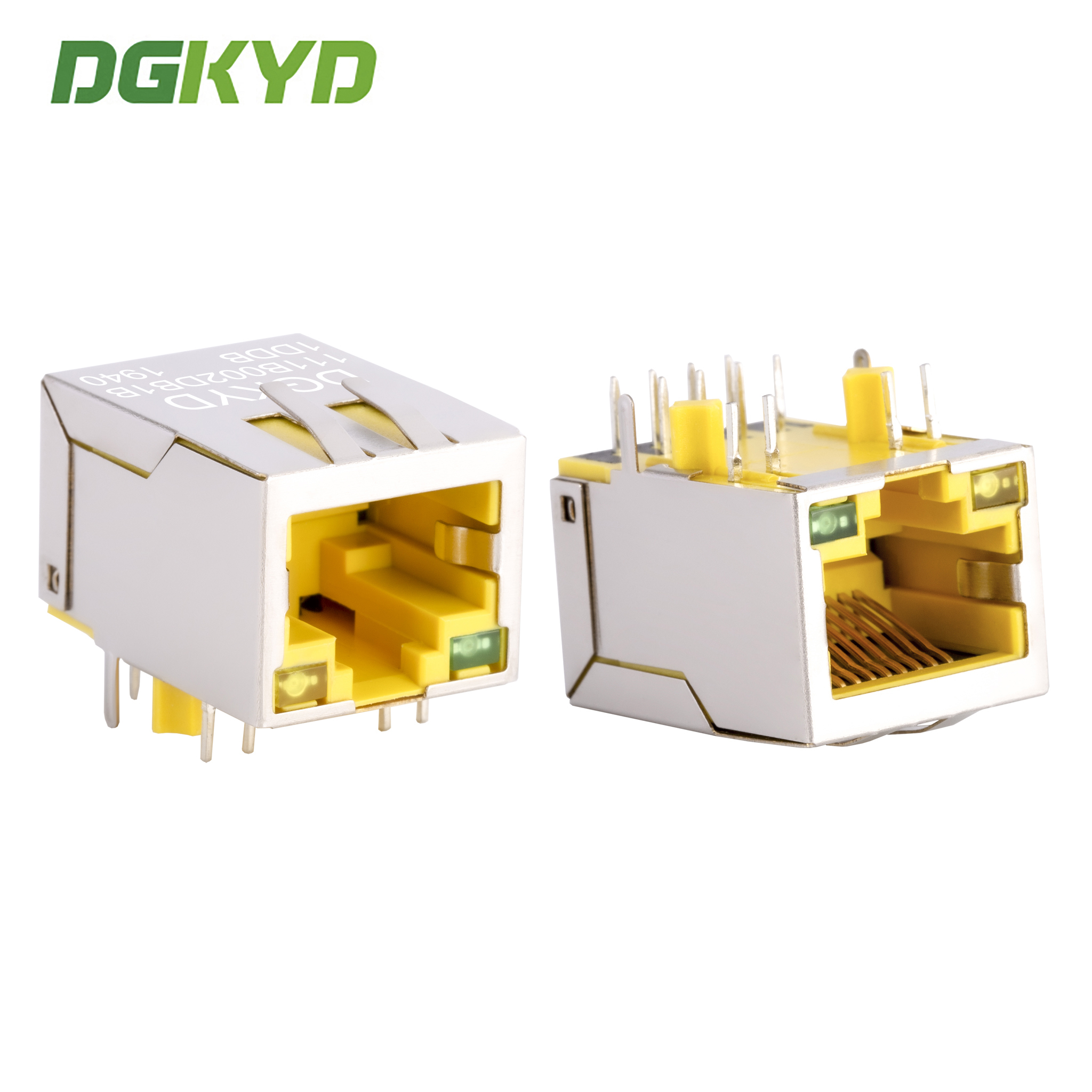

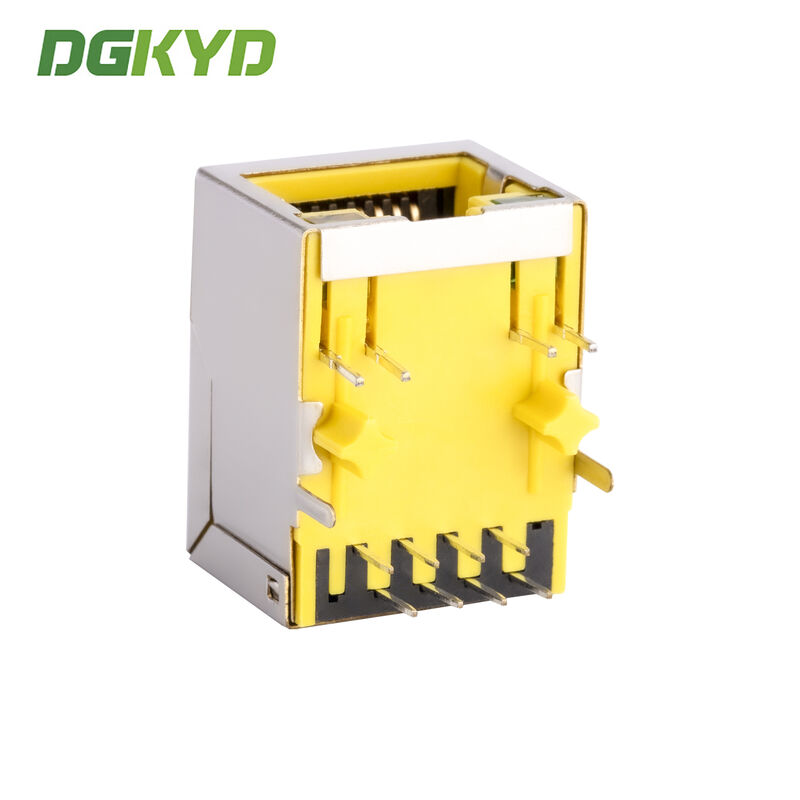

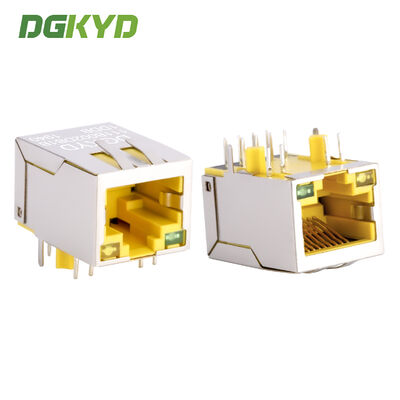

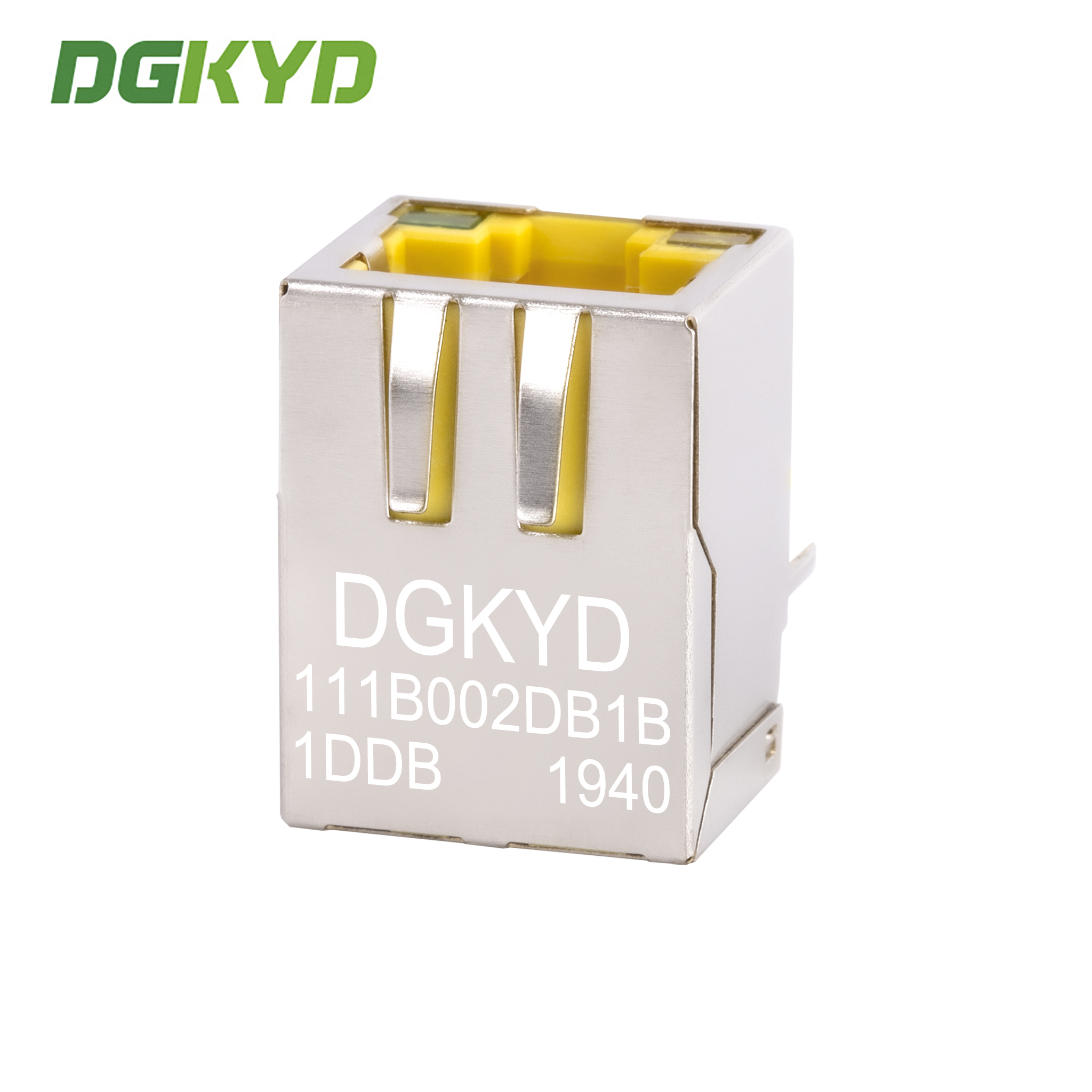

RJ45 100Mbps industrial communication network interface Ethernet socket yellow DGKYD111B002DB1DDB

Kuantitas min Order :	1 buah	Harga :	Please contact us to get the latest price.
Kemasan rincian :	Baki di Karton	Waktu pengiriman :	10 hari
Syarat-syarat pembayaran :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Menyediakan kemampuan :	100K PC/hari

Tempat asal:	Dongguan of China	Nama merek:	DGKYD
Sertifikasi:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Nomor model:	DGKYD111B002DB1DDB

Informasi Detail
Nama Produk:	RJ45 dengan transformator	Perumahan:	Fenolik, PBT Kuning (UL94V-0)
Inti plastik:	Pengisi serat kaca PBT Kuning (UL94V-0),ROHS	Perisai RJ45:	Ya
Tidak.Pelabuhan:	1x1	Jenis:	Dongkrak betina
DIPIMPIN:	kuning/hijau	Jumlah posisi/kontak:	8P8c (RJ45, Ethernet)
Pelapisan emas pada pin kontak:	6U	Suhu Operasional:	-40 ° C ~+85 ° C.
Suhu penyimpanan penyimpanan:	- 40 ℃ ~ 85 ℃
Menyoroti:	RJ45 Ethernet socket with transformer , 100Mbps industrial Ethernet socket , yellow RJ45 network interface

Deskripsi Produk

RJ45 100Mbps Industrial Communication Network Interface Ethernet Socket

Part Number: DGKYD111B002DB1DDB | Brand: DGKYD/OEM/ODM

Product Specification

Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-DOWN
Filter	With Filter
LED Option	With LED
LED Color	Yellow/Green
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	1X1 Ports
Number of Positions	8
Jack Configuration	1X1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Yellow
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

RJ45, in order to keep good contact between gold finger and crystal head, should have gold plating on the surface. Available in 6u, 15u, 30u, 50u thicknesses (typically 6u used). Gold finger insert and pull life should be 750 times minimum.

LED Specifications

Emitting Color	Dominant Wavelength (nm)	Forward Voltage (v)	Forward Current (A)	Type
Green	570-575	1.8-2.4	20mA	Squareness
Yellow	585-590	1.8-2.4	20mA	Squareness

Product Features

Interface type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working frequency: High frequency with filtering and anti-interference characteristics
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead-free soldering: Wave soldering height up to 265℃

Manufacturer Advantages

Business mode: Direct manufacturer
Delivery time: Approximately two weeks
Customization options available:
- LED indicator light (green, yellow, red, orange, blue, bi-color)
- Shield with or without EMI fingers
- Magnetic core coil ratio options
- Magnetic circuit diversification
- Contact gold plating options (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material options (PBT, PA46, PA9T, LCP)
Products meet industry standards for electrical properties, mechanical dimensions, and environmental protection

Frequently Asked Questions

Q: Are you trading company or manufacturer?

A: We are manufacturer. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
