Vertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With Magnetics KRJ-180CYGLNL

Hubungi sekarang

Vertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With Magnetics KRJ-180CYGLNL

Kuantitas min Order :	1 buah	Harga :	Please contact us to get the latest price.
Kemasan rincian :	Baki di Karton	Waktu pengiriman :	10 Hari
Syarat-syarat pembayaran :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Menyediakan kemampuan :	100K PC/hari

Tempat asal:	Dongguan of China	Nama merek:	DGKYD
Sertifikasi:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Nomor model:	KRJ-180CYGLNL

Informasi Detail
Kecepatan:	Kucing 5 /5e	Orientasi Pelabuhan:	Entri teratas
Tameng:	Ya	kemasan:	Tht
Orientasi kait:	Entri teratas	Tidak.Pelabuhan:	1x1
Indikator status:	kuning/hijau	Jumlah posisi/kontak:	8P8c (RJ45, Ethernet)
Pelapisan emas pada pin kontak:	6U	Suhu Penyimpanan:	-40°C~+85°C
Suhu pengoperasian:	-40°C~+85°C
Menyoroti:	shielded RJ45 jack with magnetics , 180 degree vertical RJ45 connector , KRJ-180CYGLNL Ethernet LAN jack

Deskripsi Produk

Vertical 180 Degree Ethernet RJ45 Connector Shielded RJ45 Jack With Magnetics KRJ-180CYGLNL

Product Overview

180-Degree Vertical RJ45 Transformer with integrated magnetics for reliable network connectivity.

Part Number

KRJ-180CYGLNL

Technical Specifications

Part Number	KRJ-180CYGLNL
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-UP
Filter	With Filter
LED Option	With LED
LED Color	Yellow/Green
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	Single Ports
Number of Positions	8
Jack Configuration	1X1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

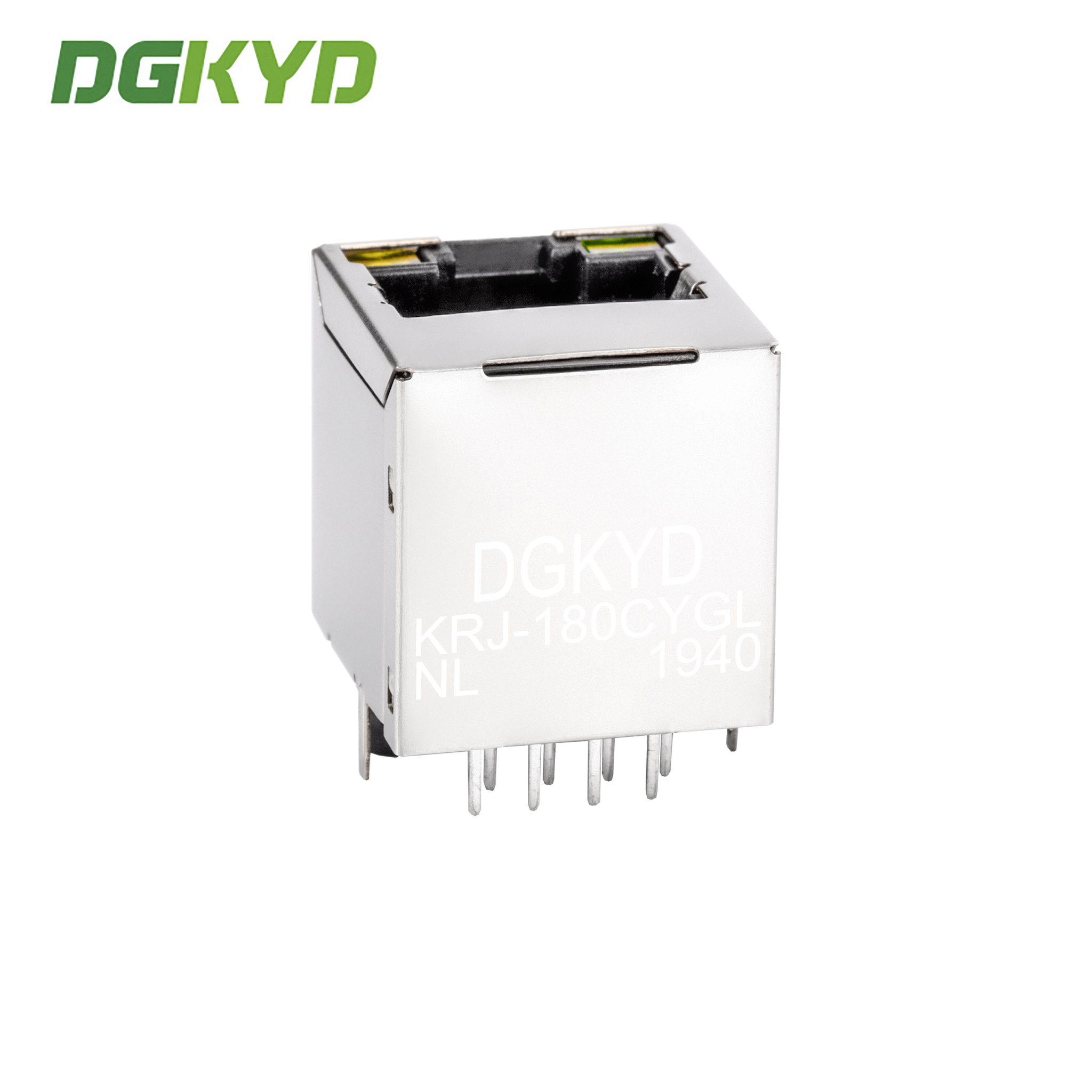

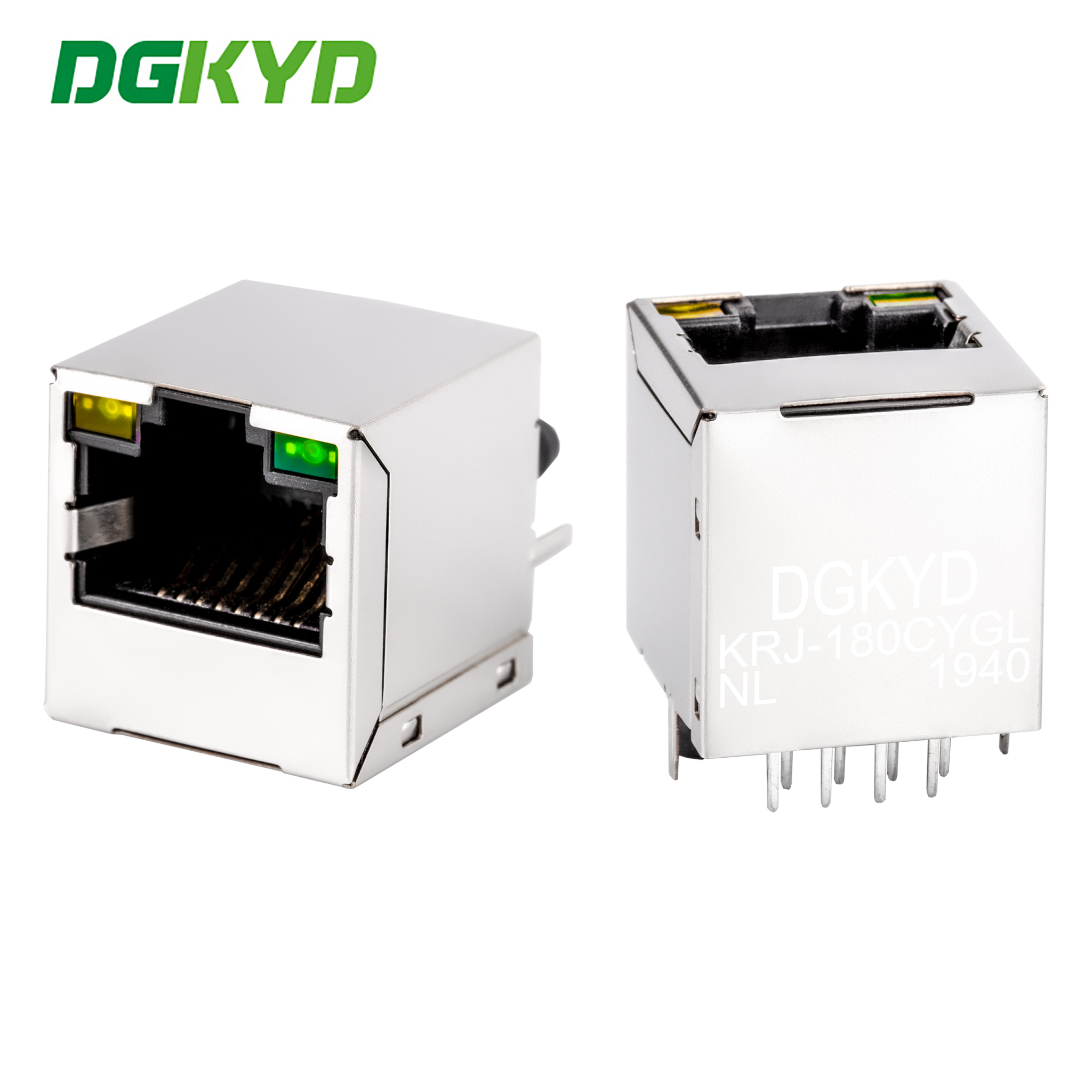

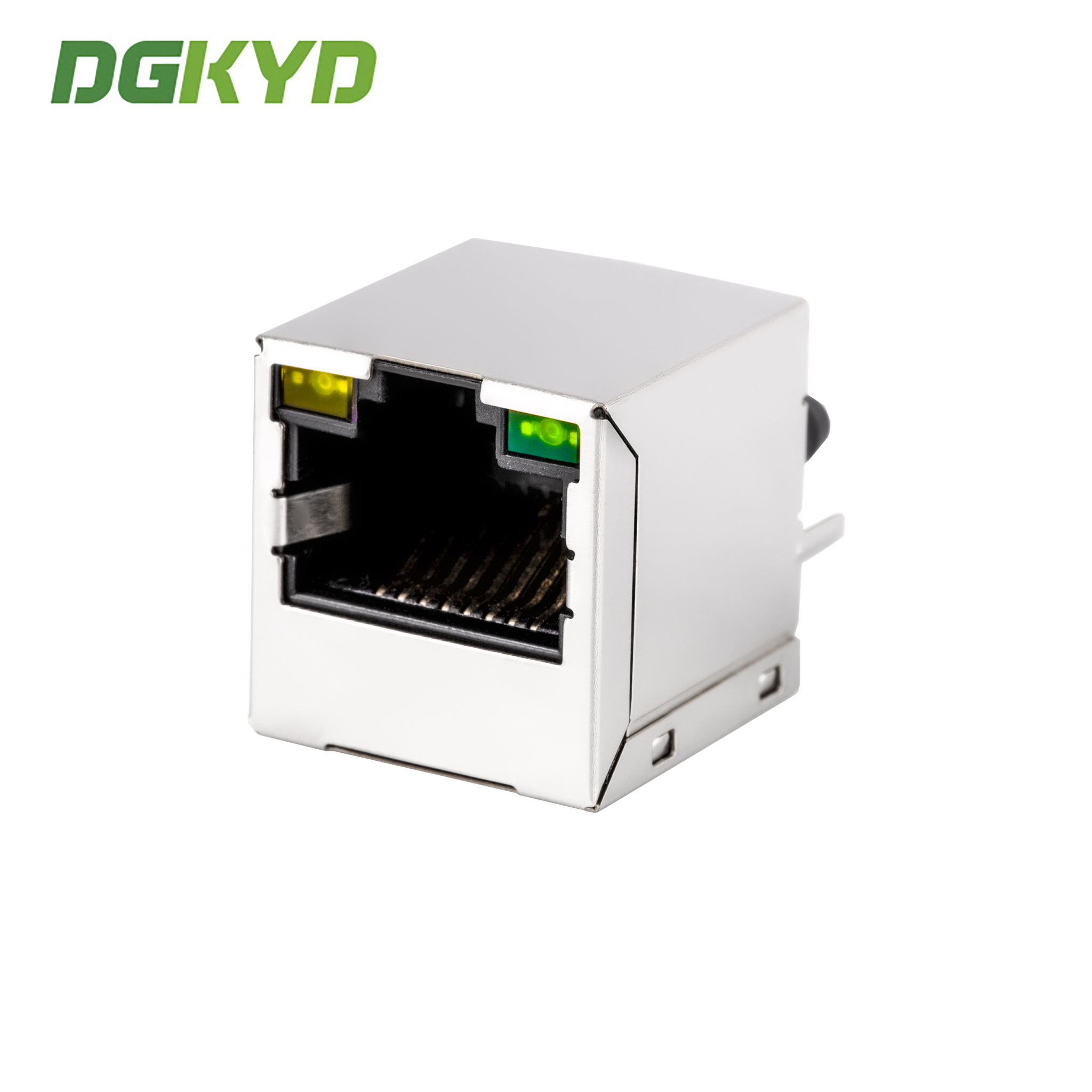

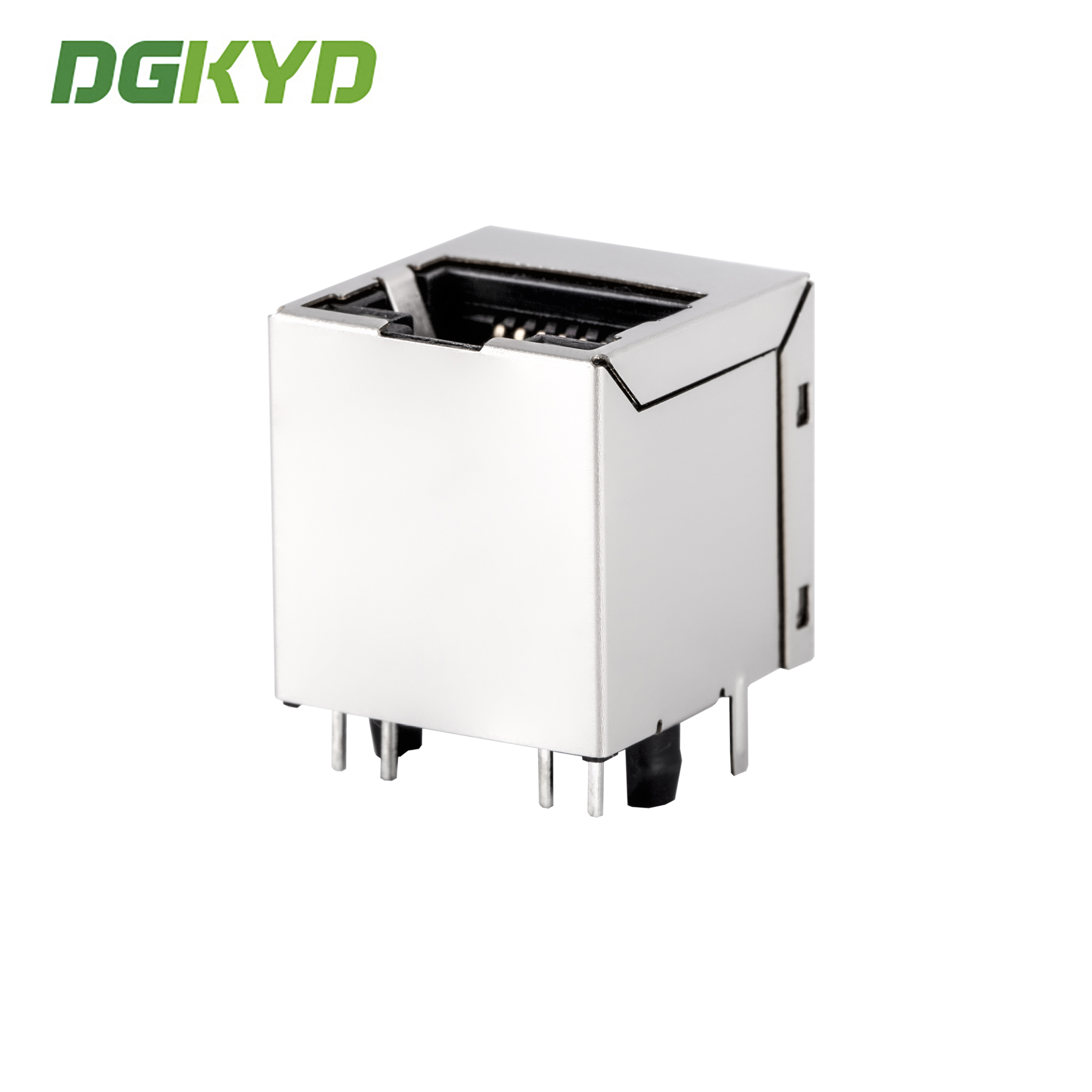

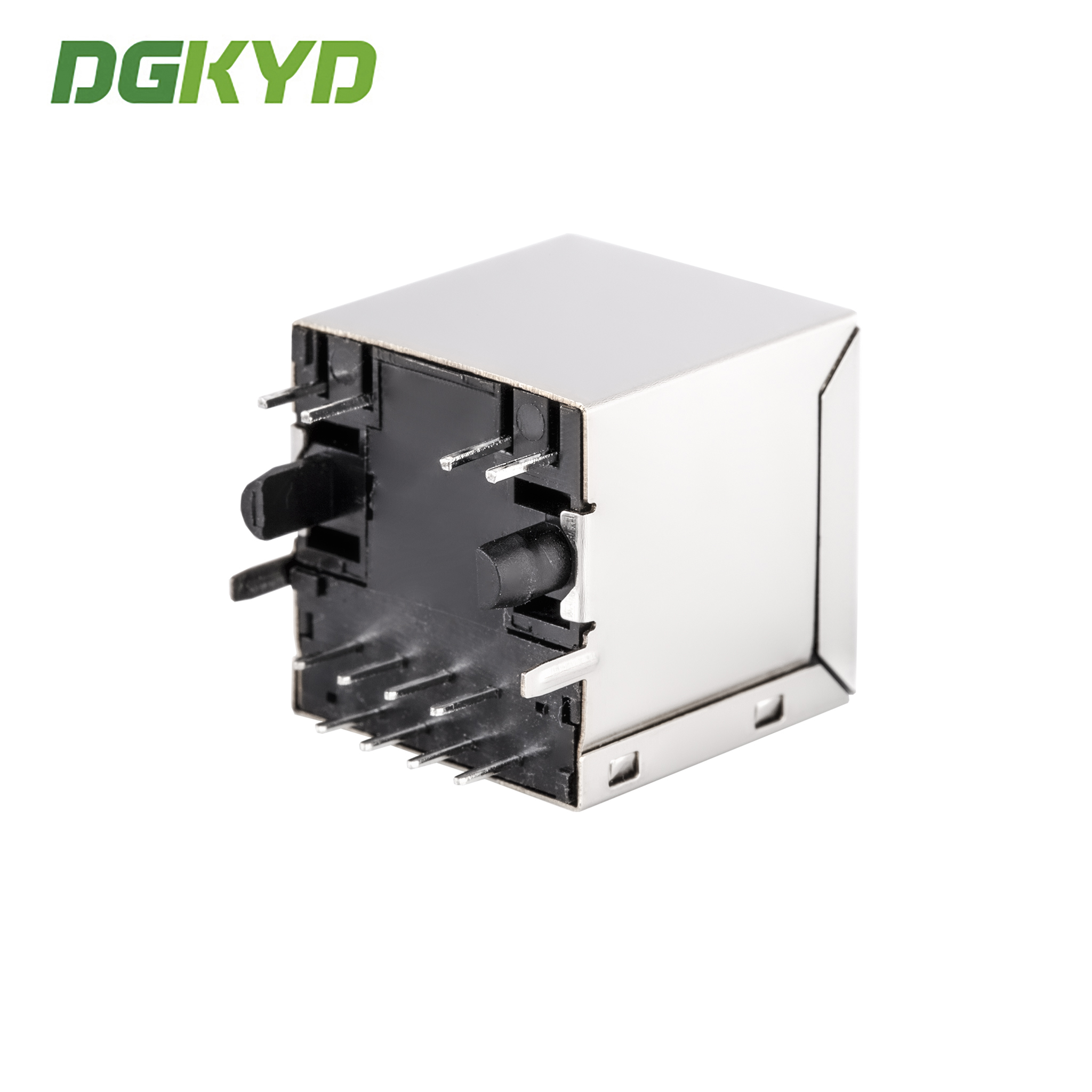

Product Images

Manufacturer Information

Company Profile Vertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With Magnetics KRJ-180CYGLNL 3

Factory Show Vertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With Magnetics KRJ-180CYGLNL 4

Factory Interior Vertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With Magnetics KRJ-180CYGLNL 5

Factory Equipment Vertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With Magnetics KRJ-180CYGLNL 6

Product Showcase Vertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With Magnetics KRJ-180CYGLNL 7

Product Features

Interface type: crystal head application for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working frequency: high frequency with filtering and anti-interference characteristics
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead-free soldering compatible with wave soldering up to 265℃
Complete RJ45 integrated circuit accessories series
Manufacturer direct supply
Approximately two-week delivery time
Multiple LED indicator options (green, yellow, red, orange, blue, bi-color)
Optional EMI finger shielding
Customizable magnetic core coil ratios
Diverse magnetics circuit options
Contact gold plating options (FU, 3U, 6U, 15u, 30U, 50U)
Multiple plastic housing materials (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical specifications, and environmental compliance. Your satisfaction is our primary service objective.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer. Welcome to visit our factory.

What about your lead time?

For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time depends on order quantity.

Can you provide samples? Are they free?

Yes, we typically provide 2-3 samples of standard products free for testing purposes.

Can I put my own logo on it?

Yes. With 11 years of OEM experience, we are fully capable of customizing products to your specifications.
