4 Ports Giga Ethernet Connector Rj45 Modular Jack,Industrial network port 1000 BASE-TX KRJ-4339PGYENL

Hubungi sekarang

4 Ports Giga Ethernet Connector Rj45 Modular Jack,Industrial network port 1000 BASE-TX KRJ-4339PGYENL

Kuantitas min Order :	1 buah	Harga :	Please contact us to get the latest price.
Kemasan rincian :	Baki di Karton	Waktu pengiriman :	10 Hari
Syarat-syarat pembayaran :	T/T,D/P,D/A,L/C,Western Union,MoneyGram	Menyediakan kemampuan :	100K PC/hari

Tempat asal:	Dongguan of China	Nama merek:	DGKYD
Sertifikasi:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Nomor model:	KRJ-4339PGYENL

Informasi Detail
Pelapisan Kontak:	6U Emas	Nomor Posisi:	4 posisi
RJ45 Cocok:	untuk CAT5 & 6 Kabel Ethernet atau UTP	Aplikasi:	lan, bridge, PC, router, jaringan hub usb rj45 dan semua perangkat ethernet
Jenis kelamin:	Perempuan	Nama Produk:	Konektor Ethernet RJ45
pelapisan:	Pelapisan Glod 6U/15U/30U/50U	Warna LED:	Hijau kuning
Bahan perumahan:	PBT HITAM	Suhu Operasi:	-40°C~+85°C
Suhu Penyimpanan:	-40°C~+85°C
Menyoroti:	4 port Giga Ethernet RJ45 jack , industrial network port 1000BASE-TX , RJ45 modular jack with warranty

Deskripsi Produk

4 Ports Giga Ethernet Connector RJ45 Modular Jack

Industrial network port 1000 BASE-TX KRJ-4339PGYENL

Product Overview

Part Number: KRJ-4339PGYENL
Product Documentation (PDF)

Technical Parameters

Parameter	Specification
Part Number	KRJ-4339PGYENL
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-UP
Filter	With Filter
LED Option	With LED
LED Color	Green/Yellow
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	1X4 Port
Number of Positions	12
Jack Configuration	1X4
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

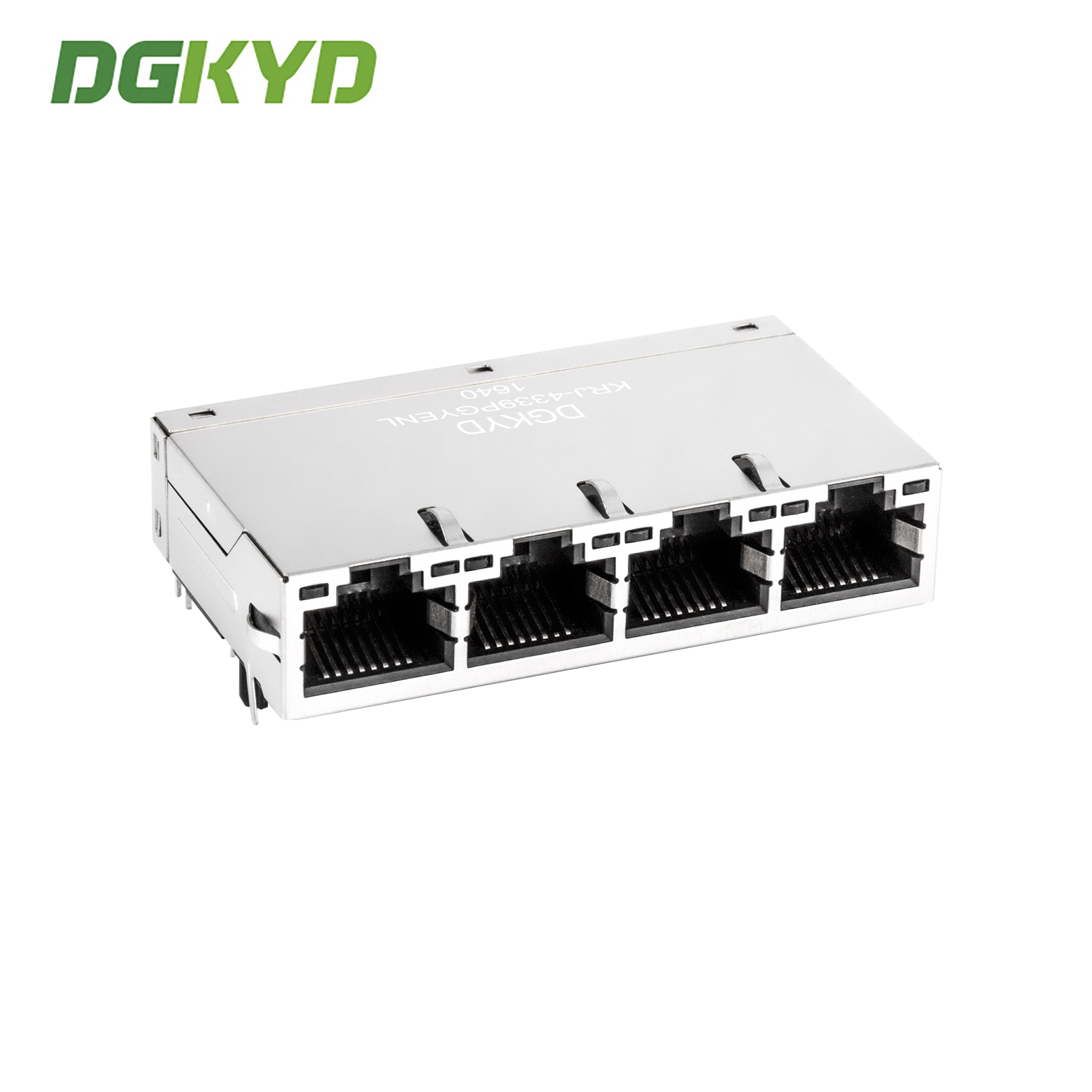

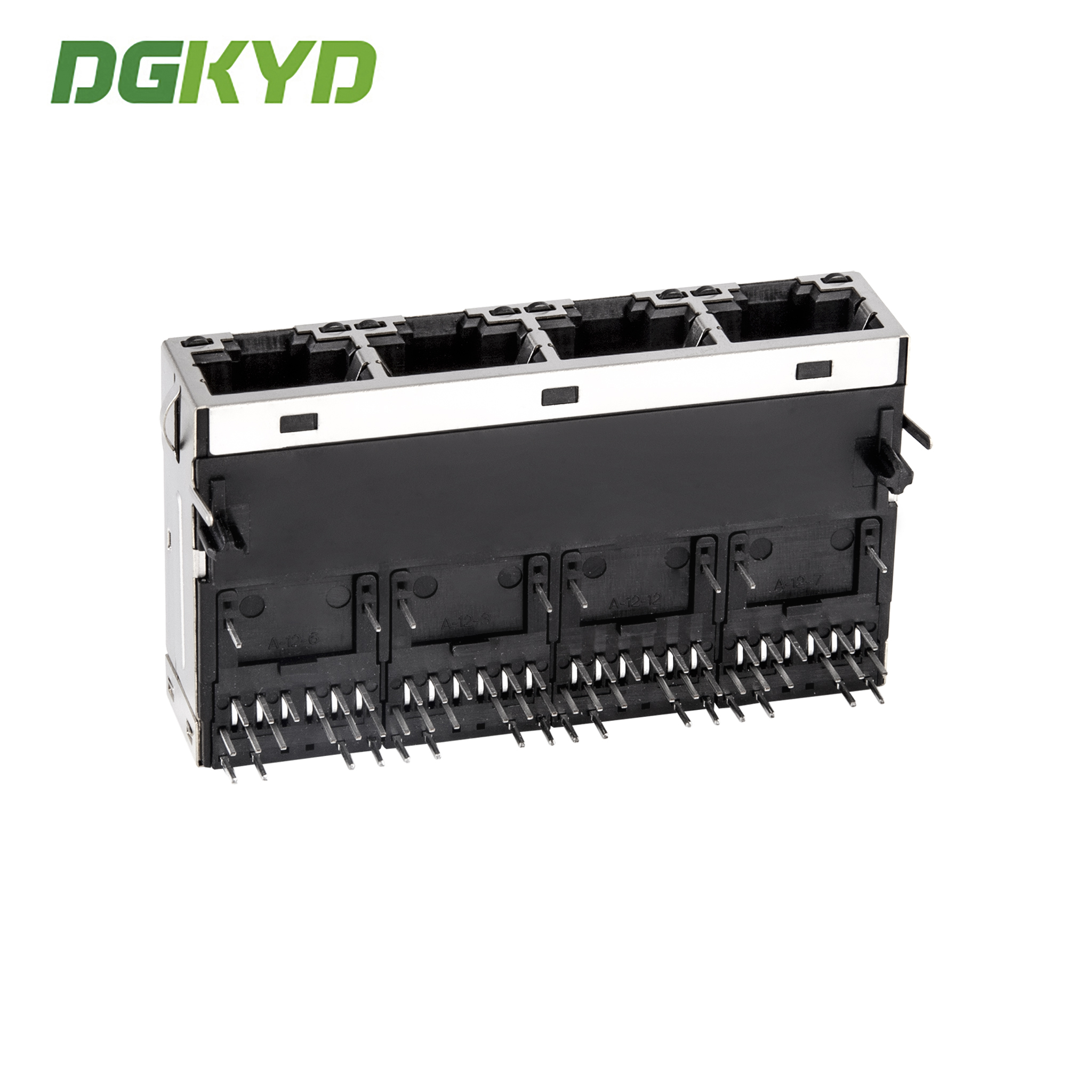

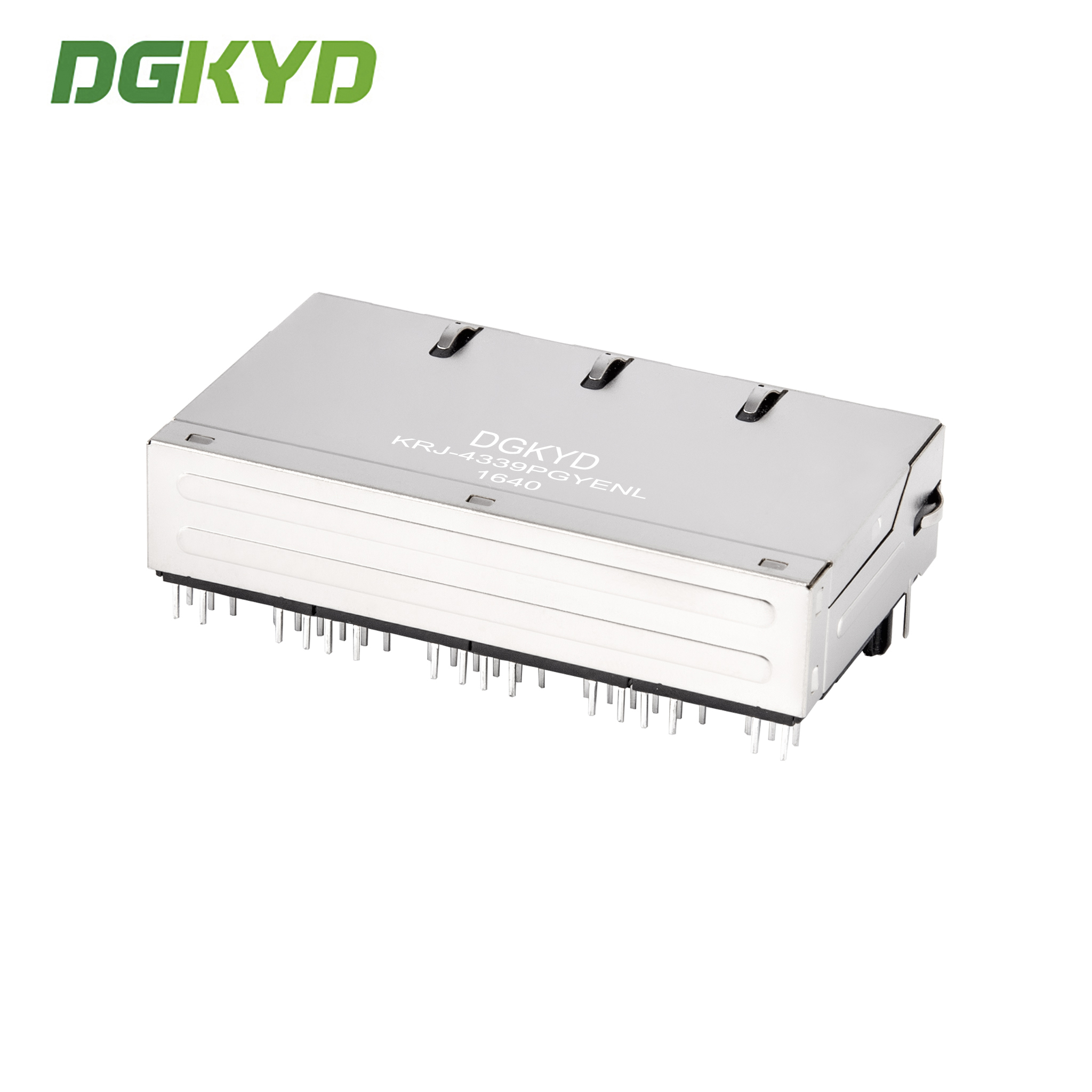

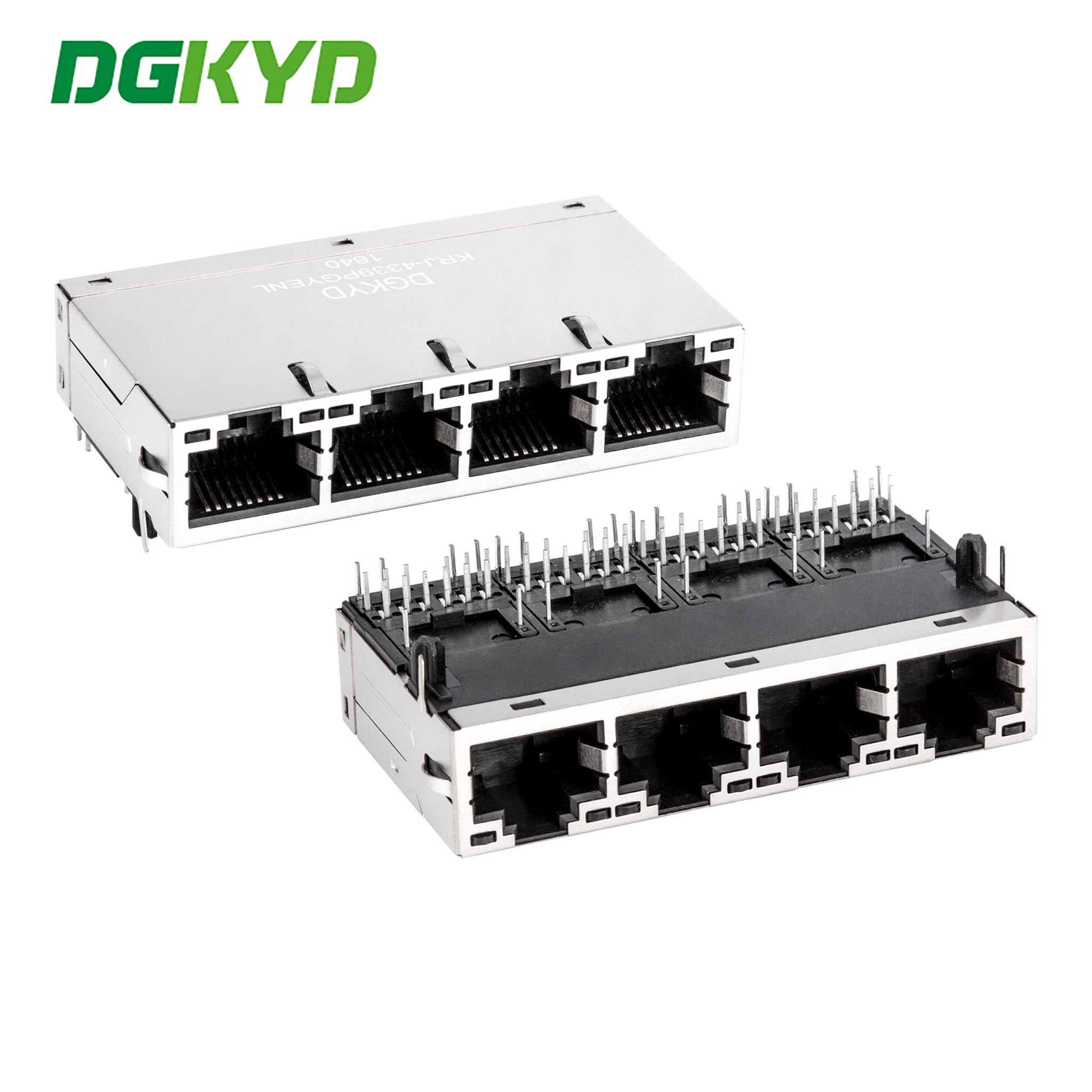

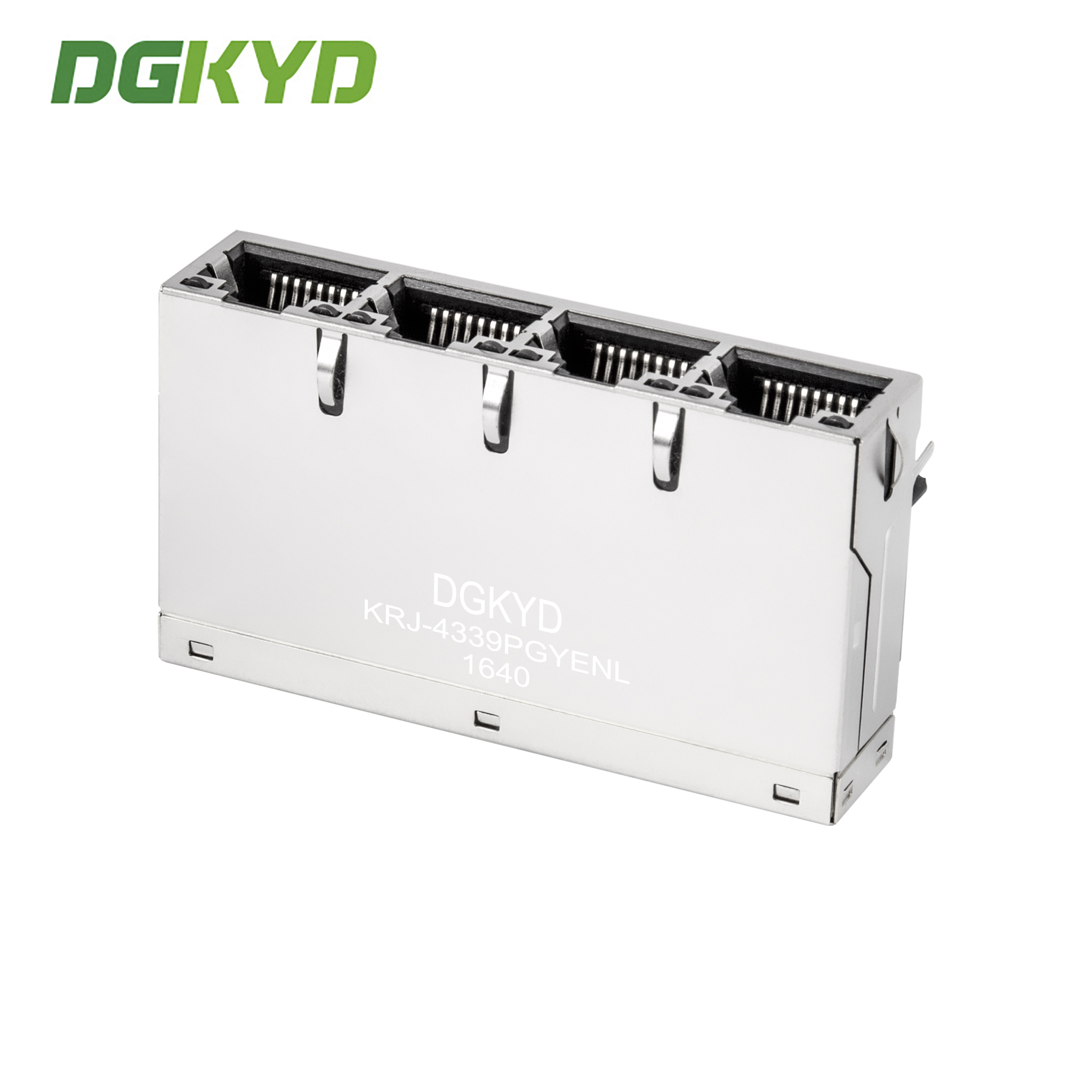

Product Images

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer. Welcome to visit our factory.

What about your lead time?

For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Can you provide samples? Are they free?

Yes. We typically provide 2-3 samples of standard products free for testing purposes.

Can I put my own logo on it?

Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
