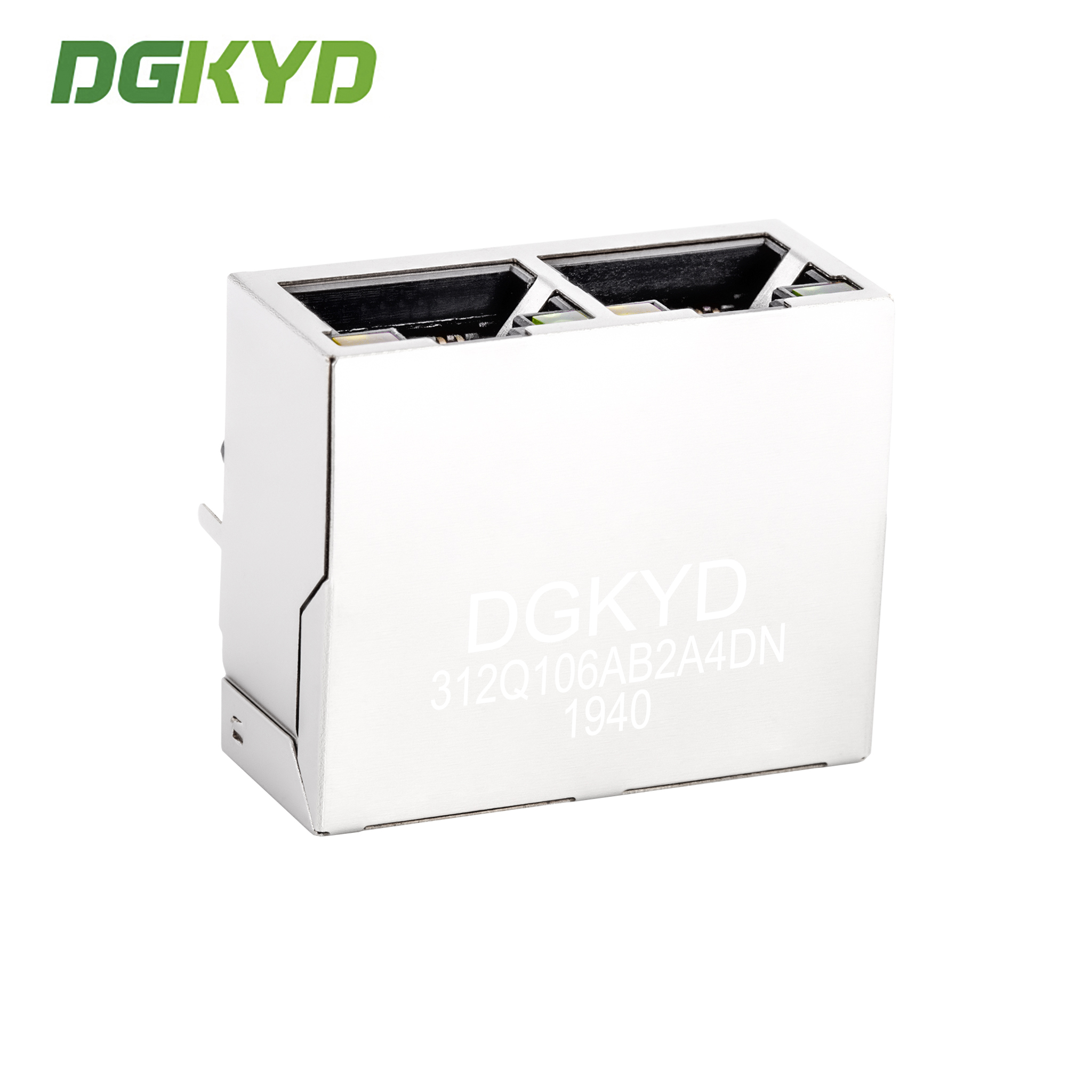

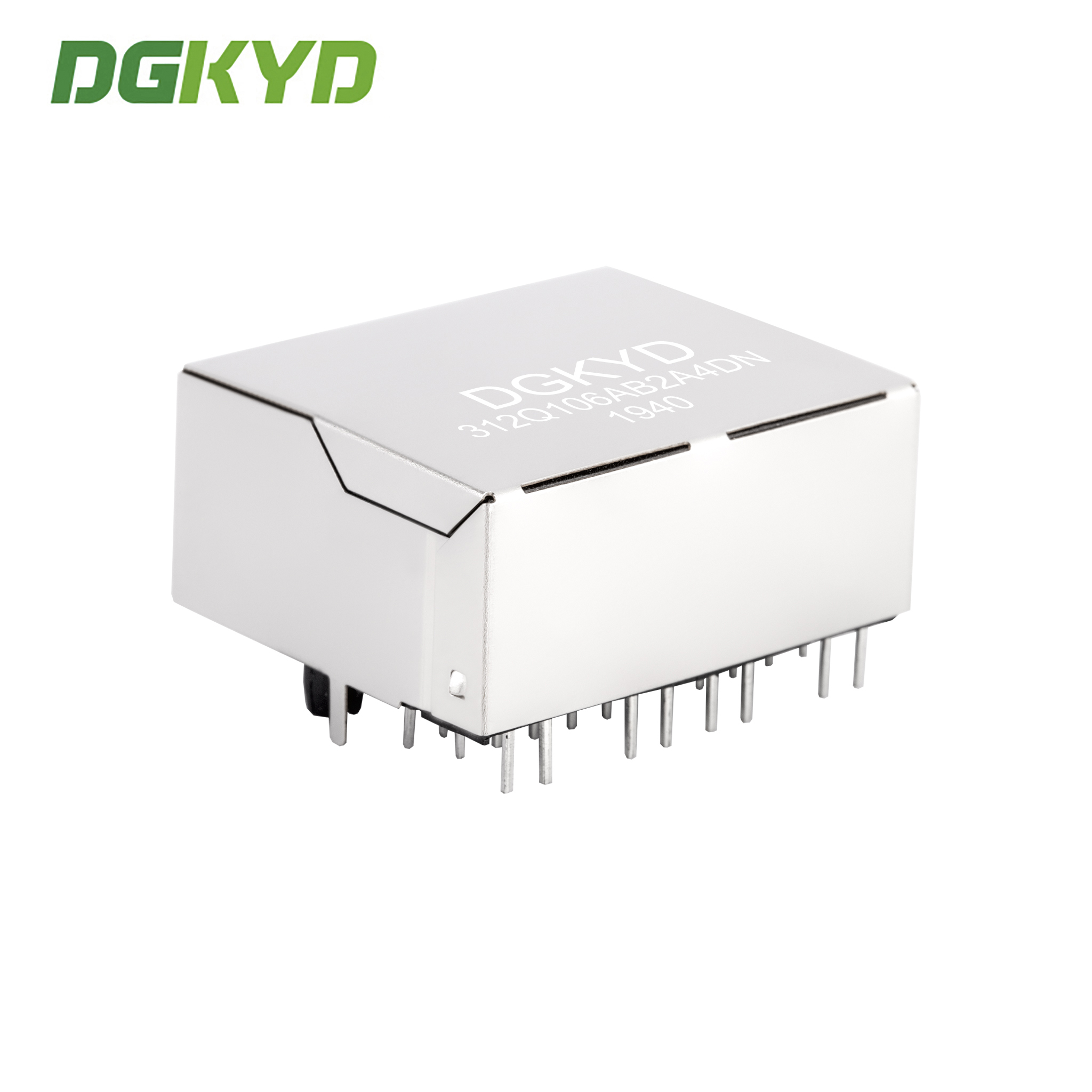

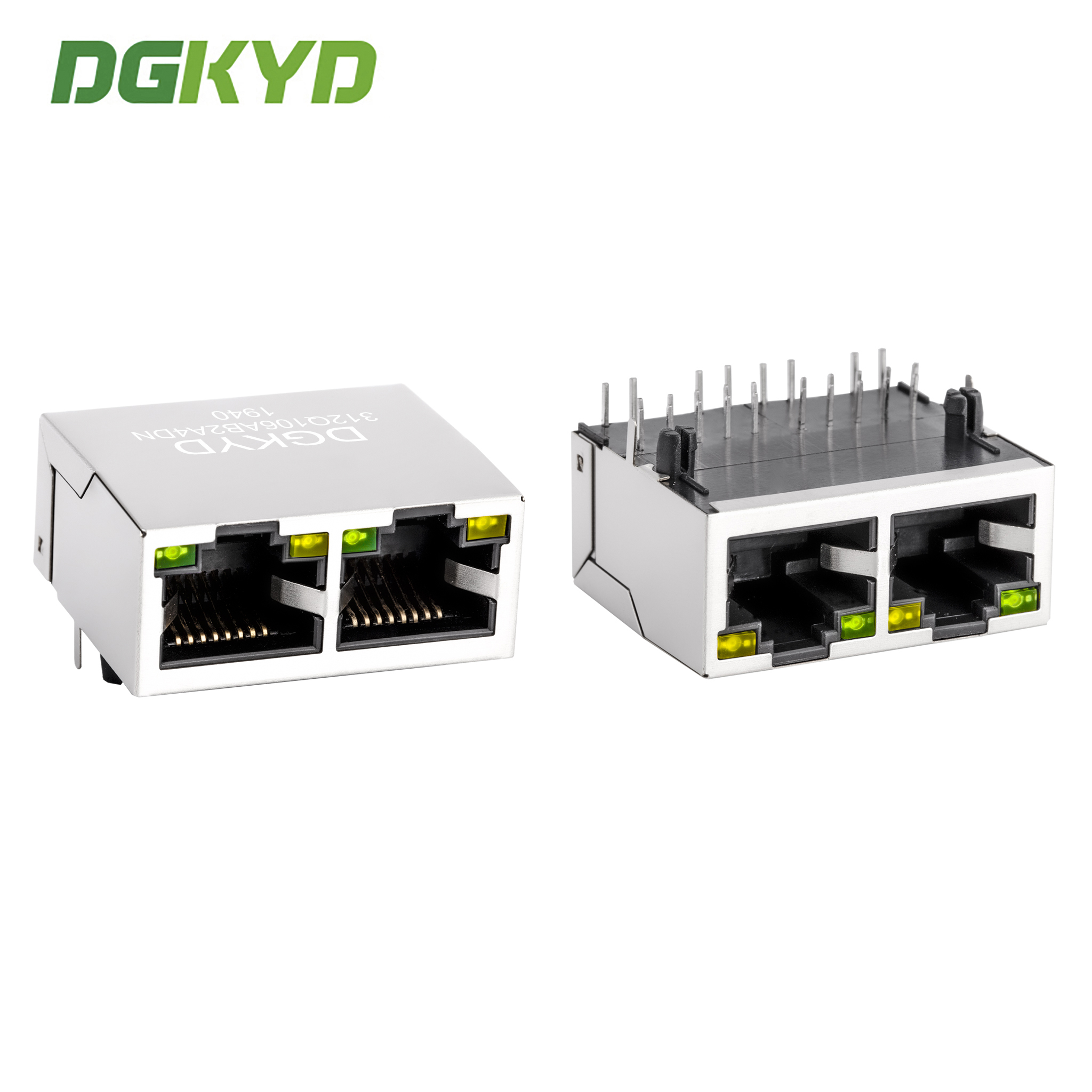

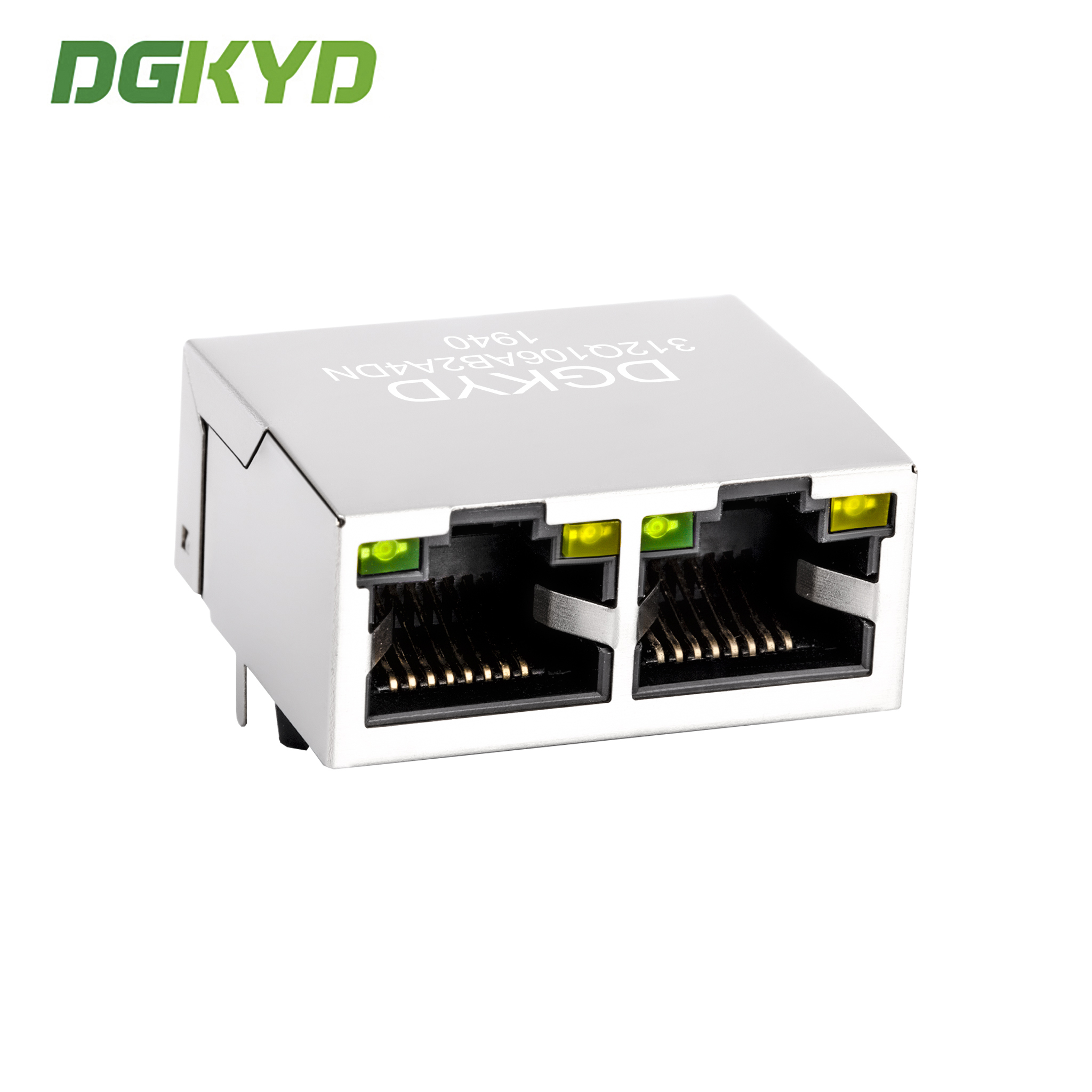

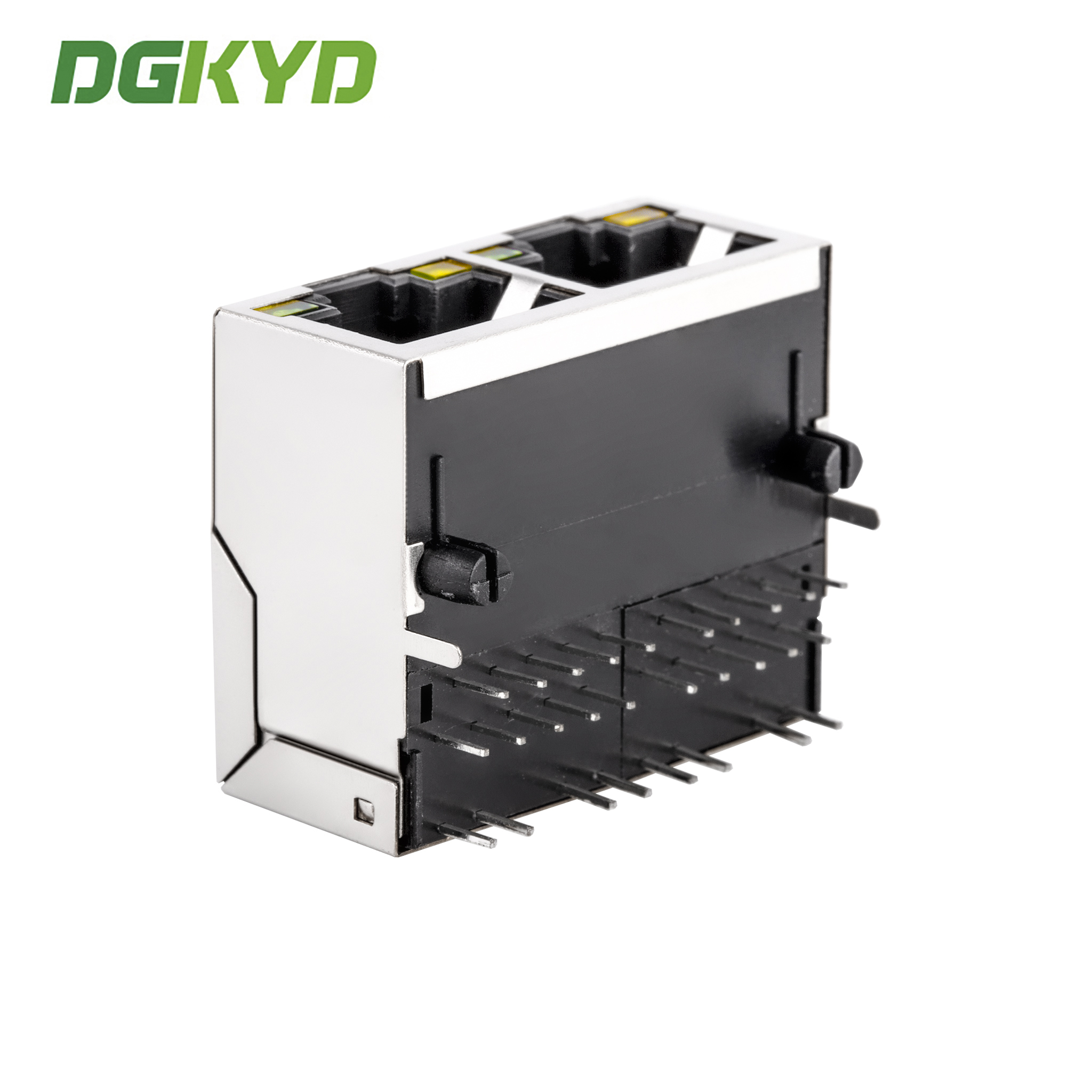

Multi-Port 1X2 RJ45 Connector with Gigabit Integrated Filter and 10-Pin Gold Plated Contact Pins

Kuantitas min Order :	perundingan	Harga :	Please contact us to get the latest price.
Kemasan rincian :	720 Baki dalam Karton	Waktu pengiriman :	15 hari
Syarat-syarat pembayaran :	T/T,D/P,D/A,L/C,Western Union,	Menyediakan kemampuan :	100K PC/hari

Tempat asal:	Dongguan of China	Nama merek:	DGKYD
Sertifikasi:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Nomor model:	DGKYD312Q106AB2A4DN
Dokumen:	DGKYD312Q106AB2A4DN.pdf

Informasi Detail
Jenis Produk:	Konektor RJ45 1000M	Metode enkapsulasi:	Paket Inline Ganda
Gaya Mount PCB:	MENCELUPKAN	Bahan:	PBT
Tameng:	Kuningan	Jumlah pin:	10
Dimensi (mm):	30,5* 25,3*13,7	Pelapisan emas pada pin kontak:	6U
Suhu Penyimpanan:	- 40 ℃ ~ 85 ℃	dipimpin:	Hijau kuning
Arah Tab Konektor RJ45:	Ketuk ATAS
Menyoroti:	Gigabit Integrated Filter RJ45 Connector , 10-Pin Configuration Ethernet Transformer , Gold Plated Contact Pins Modular Jack

Deskripsi Produk

Multi-Port 1X2 RJ45 Network Connector Ethernet Transformer Gigabit Integrated Filter With Light DGKYD312Q106AB2A4DN Multi-Port 1X2 RJ45 Network Connector Ethernet Transformer Gigabit Integrated Filter With Light DGKYD312Q106AB2A4DN Product Information Part Number: DGKYD312Q106AB2A4DN Product Documentation: DGKYD312Q106AB2A4DN.pdf Technical Parameters Parameter Value Parameter Value Part Number DGKYD312Q106AB2A4DN Brand DGKYD/OEM/ODM Product Type Connector-Modular Connector

Label:

Multi-Port 1X2 RJ45 Connector with Gigabit Integrated Filter and 10-Pin Gold Plated Contact Pins

Gigabit Integrated Filter RJ45 Connector

10-Pin Configuration Ethernet Transformer

Gold Plated Contact Pins Modular Jack
